Wholesales Supply

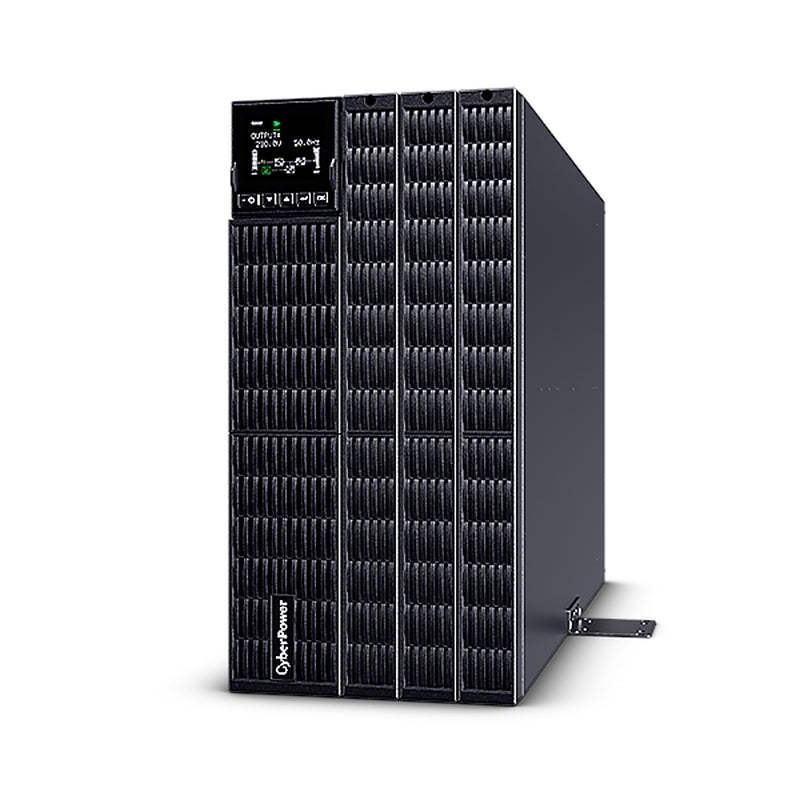

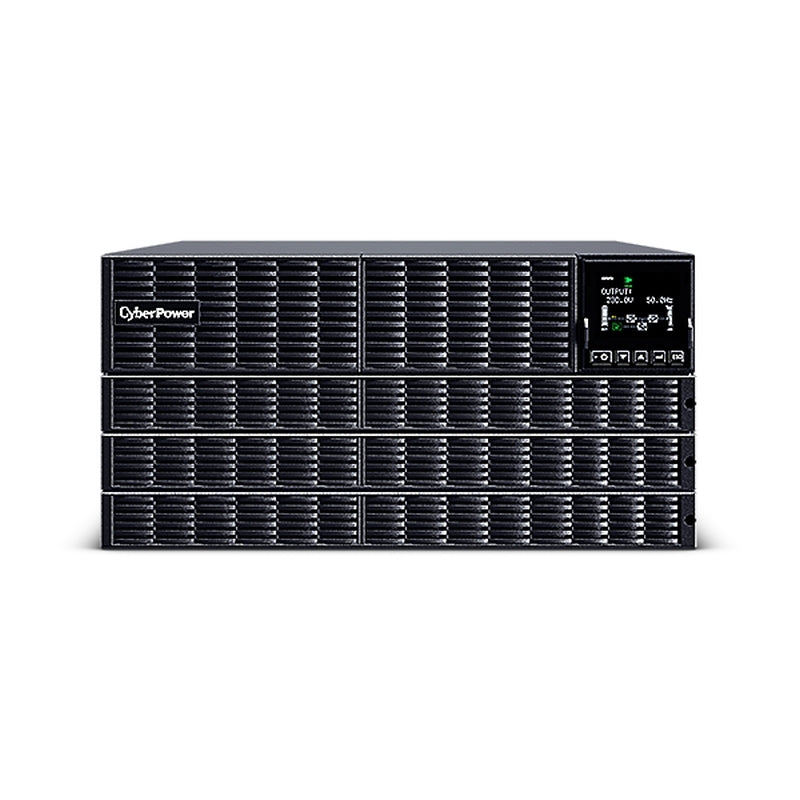

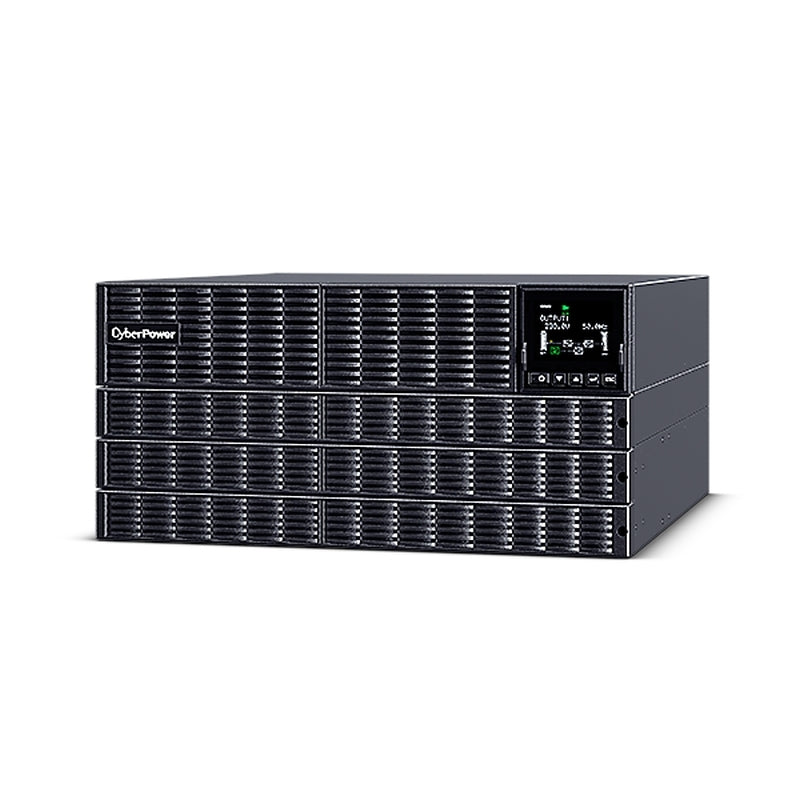

CP 10000VA/10000W Rack UPS

CP 10000VA/10000W Rack UPS

Low stock: 1 left

SKU:OLS10KERT5U

Regular price $5,356.00
Regular price $6,809.00 Sale price $5,356.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

CP 10000VA/10000W Rack UPS

{/{Features/Specification (HTML)}}:

Specifications:



  • Phase: Single Phase

  • Form Factor: Rackmount / Tower

  • UPS Topology: Online Double Conversion

  • Energy Saving Technology: Online ECO Mode Efficiency > 98%

  • Active PFC Compatibility: Yes

  • Generator Compatibility: Yes

  • Nominal Input Voltage ( Vac ): 230

  • Input Voltage Range ( Vac ): 110 - 300

  • Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 144 Vac | 0-75% Load for 145 - 179 Vac | 0-100% Load for 180 - 300 Vac

  • Input Frequency ( Hz ): 50 - 60Hz

  • Input Frequency Detection: Auto-sensing

  • Rated Input Current ( A ): 49.5

  • Input Power Factor: 0.99

  • Input Connector Type: Hardwire Terminal Block

  • Capacity (VA): 10000

  • Capacity (Watts): 10000

  • On Battery Waveform: Pure Sine Wave

  • On Battery Frequency ( Hz ): 50 �� 0.5% | 60 �� 0.5%

  • Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse

  • Overload Protection (Line Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec

  • Overload Protection (Battery Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec

  • Overload Protection (Bypass Mode): 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately

  • Harmonic Distortion (Linear Load): THD?1.5%

  • Harmonic Distortion (Non-linear Load): THD?3%

  • Internal Bypass: Automatic Bypass / Manual Bypass

  • Maintenance Bypass: Yes

  • Outlet(s) - Total: 9

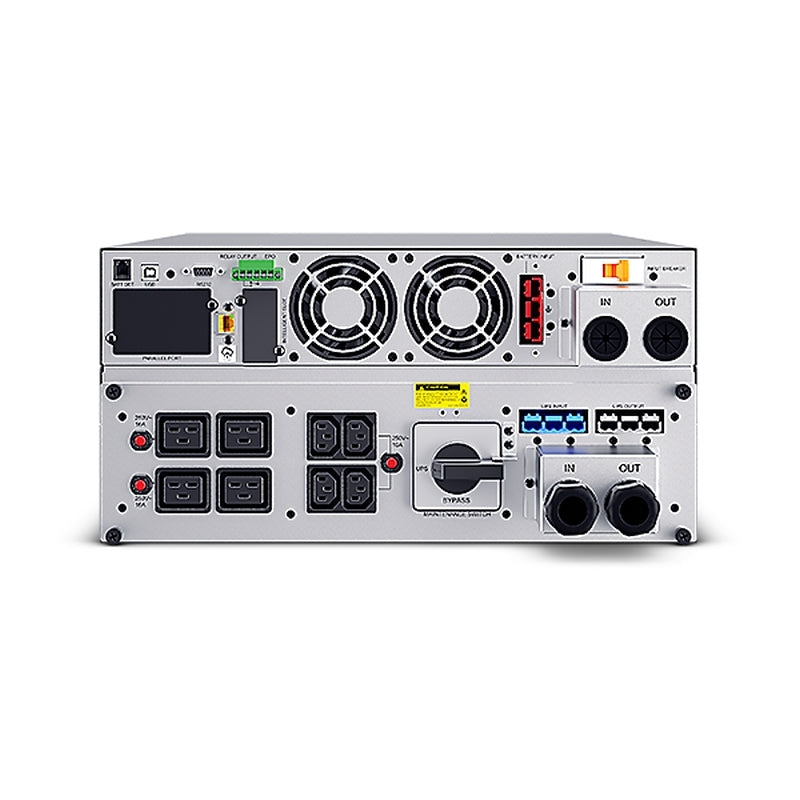

  • Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 | IEC C19 x 4

  • Typical Transfer Time ( ms ): 0

  • Runtime at Half Load ( min ): 11.2

  • Runtime at Full Load ( min ): 2.9

  • Typical Recharge Time ( Hours ): 4

  • Maximum Charging Current ( A ): 4

  • Adjustable Charging Current ( A ): 1 - 4

  • Start On Battery: Yes

  • Smart Battery Management (SBM): Yes

  • User-replaceable: Yes

  • Hot-swappable: Yes

  • Compatible Extended Battery Module (EBM): BPS240V9ART3U

  • Max. EBM Quantity ( pcs ): 10

  • Surge Suppression ( Joules ): 1335

  • EMI/RFI Filtration: Yes

  • LCD Orientation: Rotatable LCD �� Manual

  • Tiltable LCD Panel: 15 degrees

  • HID Compliant USB Port(s): 1

  • Serial Port: RS232

  • Dry Contact (with Relay): Yes

  • Emergency Power Off (EPO) Port: Yes

  • Power Management Software: PowerPanel Business (Recommended)

  • SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

  • Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included

  • Enclosure Construction: Metal

  • Rackmount Rail: Yes

  • Rackmount Ears: Yes

  • Dimensions: 433 x 213.5 x 661mm

  • Weight: 80kg

  • Installed Rack Height ( U ): 5

  • Online Thermal Dissipation ( BTU/hr ): 2047

  • Audible Noise at 1.0M from Surface of Unit: 62 dBA

  • Certifications: CE / RoHS



Features:



  • Online (Double Conversion) UPS Topology

  • High Output Power Factor

  • Overload Protection

  • Maintenance Bypass Switch

  • Extended Battery Module Auto-detection

  • User-replaceable Batteries

  • Tiltable LCD Panel

  • Relay-type Dry Contact

  • SNMP/HTTP Remote Management Capability (Optional)

  • Rack/Tower Convertible Configurations

  • ECO Mode

  • Pure Sine Wave Output

  • Zero Transfer Time

  • Extended Battery Module (EBM)

  • Adjustable Charging Current

  • Color LCD Panel

  • Emergency Power Off (EPO) Port

  • PowerPanel Management Software

  • Built-in Remote Cloud Card by Ethernet



What's in the box?



  • 1 x OLS10KERT5U UPS

  • 1 x External Maintenance Bypass PDU

  • 1 x Rackmount Rail

  • 1 x Rackmount Ears

  • 1 x Rail Kit

  • 1 x Screw Kit

  • 1 x Power Cord

  • 1 x USB Cable

  • 1 x Phone Line

  • 1 x User Manual

View full details
