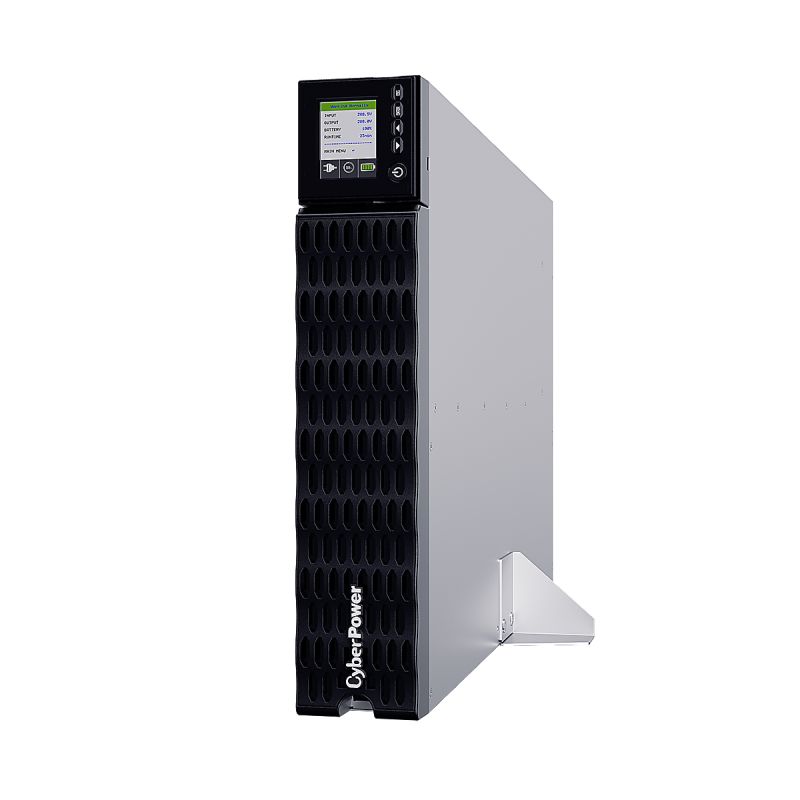

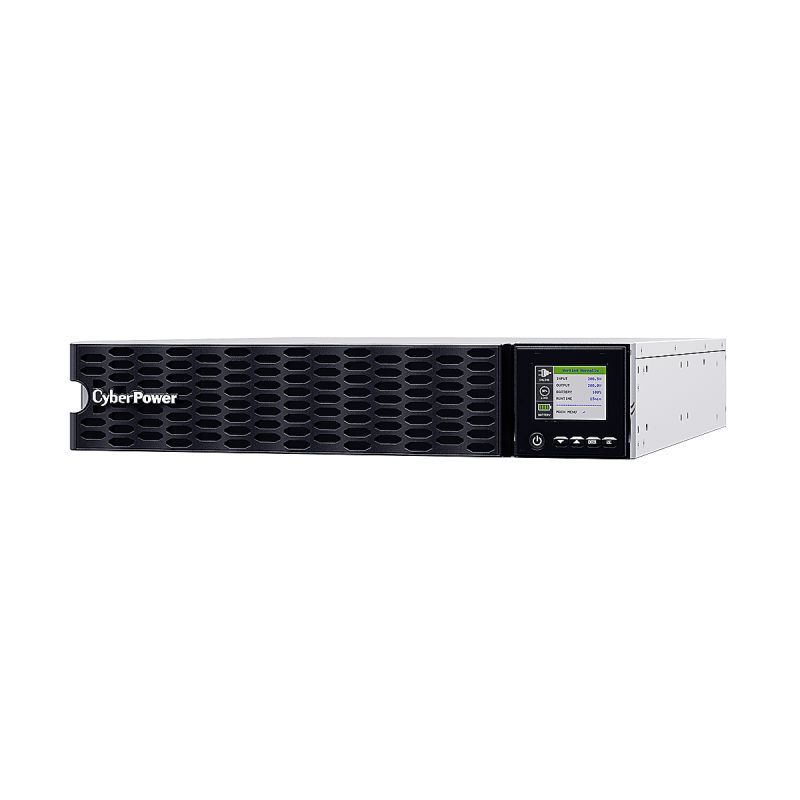

CP 6000VA/W Rack Tower UPS

CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency and surveillance systems. The UPS adopts double-conversion topology.

{/{Features/Specification (HTML)}}:

Specifications:

• Phase: Single Phase


• Form Factor: Rackmount, Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 97%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): 200 �� 2% | 208 �� 2% | 220 �� 2% | 230 �� 2% | 240 �� 2%


• Input Voltage Range ( Vac ): 200 - 240


• Adjustable Voltage Range ( Vac ): 0-25% Load for 120 - 139 Vac | 0-50% Load for 140 - 159 Vac | 0-75% Load for 160 - 179 Vac | 0-100% Load for 180 - 280 Vac


• Input Frequency ( Hz ): 50 �� 10 | 60 �� 10


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 32


• Input Power Factor: 0.99


• Input Connector Type: Hardwire Terminal Block


• Output Capacity (Watts): 6000


• On Battery Waveform: Pure Sine Wave


• On Battery Voltage(s) ( Vac ): 200 �� 2% | 208 �� 2% | 220 �� 2% | 230 �� 2% | 240 �� 2%


• Output Voltage Setting: Configurable


• On Battery Frequency ( Hz ): 50 �� 0.5% | 60 �� 0.5%


• Output Frequency Setting: Configurable


• Power Factor: 1


• ECO Mode Voltage Tolerance: �� 10 % | �� 15 %


• Overload Protection: Internal Current Limiting, Circuit Breaker


• Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec


• Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec


• Overload Protection (Bypass Mode): Circuit Breaker


• Crest Factor: 3 : 1


• Harmonic Distortion (Linear Load): THD?3%


• Harmonic Distortion (Non-linear Load): THD?5%


• Internal Bypass: Automatic Bypass, Manual Bypass

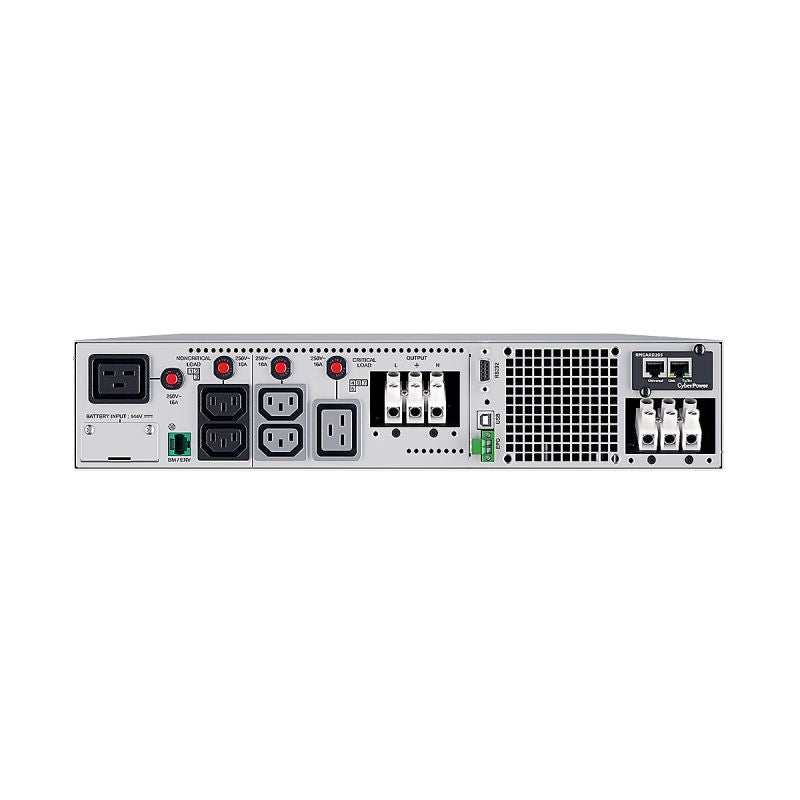

• Outlet(s) - Total: 7


• Outlet Type: IEC C13 x 4 | IEC C19 x 2 | Hardwire Terminal Block x 1


• Outlet(s) - Battery & Surge Protected: 7


• Outlet(s) - Critical Load (CL): 4


• Outlet(s) - Non-Critical Load (NCL): 3


• Typical Transfer Time ( ms ): 0


• Runtime at Half Load ( min ): 4.9


• Runtime at Full Load ( min ): 1.4


• Typical Recharge Time ( Hours ): 4


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• Built-in Battery Management Module: Yes


• User-replaceable: Yes - Qualified Personnel Only


• Hot-swappable: Yes


• Battery Type: Sealed Lead-acid


• Replacement Battery Pack: RBP0144


• RBP Quantity ( pcs ): 1


• Battery Quantity (Each RBP) ( pcs ): 12


• Battery Voltage (Each RBP) ( V ): 144


• Compatible Extended Battery Module (EBM): BPE144VL2U01 (Built-in Charger)


• Max. EBM Quantity ( pcs ): 10


• Surge Suppression ( Joules ): 2430


• EMI/RFI Filtration: Yes


• LCD Orientation: Rotatable LCD ��� Automatic, Rotatable LCD ��� via Setting


• Tiltable LCD Panel: 18��


• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log


• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language


• HID Compliant USB Port(s): 1


• Emergency Power Off (EPO) Port: Yes


• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery


• Management Cable ( pcs ): USB Cable x1, Serial Cable x1


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included


• Enclosure Construction: Metal


• Rackmount Rail: Yes


• Rackmount Ears: Yes


• Dimensions: 433 x 86.5 x 720mm


• Rack-mounted Dimensions: 433 x 86.5 x 685mm (Without the dimension of front panel)


• Weight: 42kg


• Certifications: CE, EAC, RCM

Features:

• Online (Double Conversion) UPS Topology


• High Density Design


• High Output Power Factor


• Tiltable LCD Panel


• Surge and Spike Protection


• Generator Compatible


• Hot-swappable Batteries


• Smart Battery Management (SBM)


• SNMP/HTTP Remote Management Capability


• ECO Mode


• Color LCD Panel


• Quick Charging Technology


• Automatically rotatable LCD


• Critical/Non-critical Load Outlets


• Battery Management Technology


• Extended Battery Module (EBM)


• Emergency Power Off (EPO) Port


• PowerPanel Management Software
