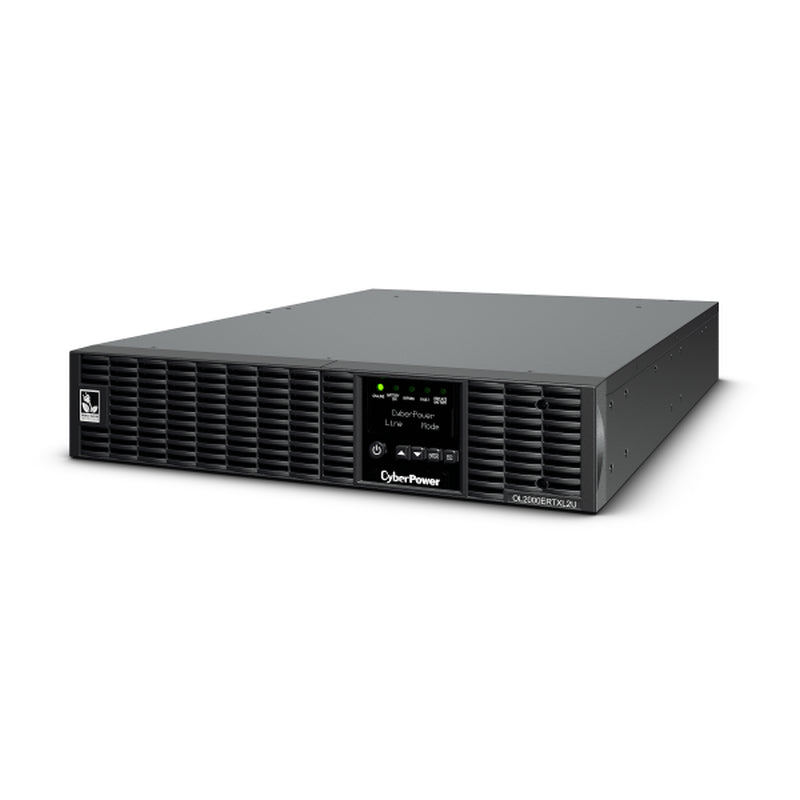

CP OL2000VA Rack Tower UPS

CyberPower OL2000ERTXL2U guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems.

{/{Features/Specification (HTML)}}:

Specifications:

• Phase: Single Phase


• Form Factor: Rackmount, Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 96%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Input Voltage Range ( Vac ): 190 - 300


• Adjustable Voltage Range ( Vac ): 0-60% Load for 120 - 139 Vac | 0-70% Load for 140 - 159 Vac | 0-80% Load for 160 - 179 Vac | 0-90% Load for 180 - 189 Vac | 0-100% Load for 190 - 300 Vac


• Input Frequency ( Hz ): 50 �� 10 | 60 �� 10


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 10


• Input Power Factor: 0.99


• Input Connector Type: IEC C14


• Detachable Power Cord Plug Type: IEC C14 x 1


• Power Cord Length (m): 3


• Output Capacity (Watts): 1800


• On Battery Waveform: Pure Sine Wave


• On Battery Voltage(s) ( Vac ): 200 �� 2% | 208 �� 2% | 220 �� 2% | 230 �� 2% | 240 �� 2%


• Output Voltage Setting: Configurable


• On Battery Frequency ( Hz ): 50 �� 0.5% | 60 �� 0.5%


• Output Frequency Setting: Configurable


• Power Factor: 0.9


• ECO Mode Voltage Tolerance: �� 10 % | �� 15 %


• Overload Protection: Internal Current Limiting, Circuit Breaker


• Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec


• Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec


• Overload Protection (Bypass Mode): Circuit Breaker


• Crest Factor: 3 : 1


• Harmonic Distortion (Linear Load): THD?3%


• Harmonic Distortion (Non-linear Load): THD?5%


• Internal Bypass: Automatic Bypass, Manual Bypass


• Outlet(s) - Total: 9


• Outlet Type: IEC C13 x 8 | IEC C19 x 1


• Outlet(s) - Battery & Surge Protected: 9


• Outlet(s) - Critical Load (CL): 5


• Outlet(s) - Non-Critical Load (NCL): 4


• Typical Transfer Time ( ms ): 0


• Runtime at Half Load ( min ): 20


• Runtime at Full Load ( min ): 6.5


• Typical Recharge Time ( Hours ): 5


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• Hot-swappable: Yes


• Battery Type: Sealed Lead-acid


• Battery Cartridge: RBP0076


• RBP Quantity ( pcs ): 1


• Battery Quantity (Each RBP) ( pcs ): 6


• Battery Voltage (Each RBP) ( V ): 72


• Compatible Extended Battery Module (EBM): BPE72V60ART2US


• Max. EBM Quantity ( pcs ): 10


• Surge Suppression ( Joules ): 1335


• EMI/RFI Filtration: Yes


• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out


• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log


• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language


• LED Indicators: Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault, Wiring Fault, Replace Battery


• HID Compliant USB Port(s): 1


• Dry Contact (with Relay): Yes


• Emergency Power Off (EPO) Port: Yes


• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery


• Management Cable ( pcs ): Power Cord x1, USB Cable x1, Serial Cable x1, Phone Line x1


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Enclosure Construction: Metal


• Rackmount Rail: Yes


• Rackmount Ears: Yes


• Dimensions: 433 x 88 x 600mm


• Weight: 31kg


• Certifications: CE, BSMI, C-Tick

Features:

• Online (Double Conversion) UPS Topology


• Generator Compatible


• Critical/Non-critical Load Outlets


• Smart Battery Management (SBM)


• Extended Battery Module (EBM)


• EMI and RFI Filtration


• LCD Status Display


• Emergency Power Off (EPO) Port


• SNMP/HTTP Remote Management Capability (Optional)


• ECO Mode


• Overload Protection


• Zero Transfer Time


• Hot-swappable Batteries


• Surge and Spike Protection


• Phone/Fax/Modem/DSL/Network Protection


• Detachable LCD Panel


• PowerPanel Management Software


• Rack/Tower Convertible Configurations
