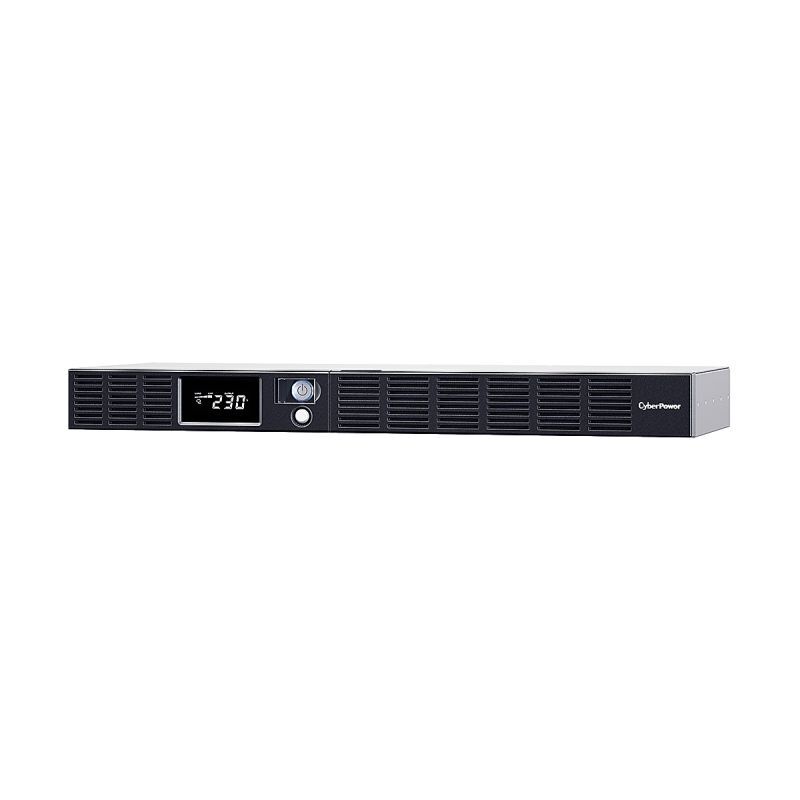

CP Smart App Rack LCD 600VA

CP Smart App Rack LCD 600VA

11 in stock

SKU:OR600ERM1U

Regular price $552.73
Regular price $699.00 Sale price $552.73
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

CyberPower OR600ERM1U-AU Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. Its typically integrated in the back office and server room.

{/{Features/Specification (HTML)}}:

Specifications:



  • Phase: Single Phase

  • Form Factor: Rackmount

  • UPS Topology: Line-interactive

  • Energy Saving Technology: GreenPower UPS Bypass Technology

  • Nominal Input Voltage ( Vac ): 230

  • Input Voltage Range ( Vac ): 165 - 271

  • Input Frequency ( Hz ): 50 �� 3 | 60 �� 3

  • Input Frequency Detection: Auto-sensing

  • Rated Input Current ( A ): 10

  • Input Connector Type: IEC C14

  • Detachable Power Cord Plug Type: IEC C14 x 1

  • Power Cord Length (m.): 1.83

  • Output Capacity (Watts): 360

  • On Battery Waveform: Simulated Sine Wave

  • On Battery Voltage(s) ( Vac ): 230 �� 10%

  • On Battery Frequency ( Hz ): 50 �� 1% | 60 �� 1%

  • Power Factor: 0.6

  • Automatic Voltage Regulation (AVR): Single Boost

  • Overload Protection: Internal Current Limiting, Circuit Breaker

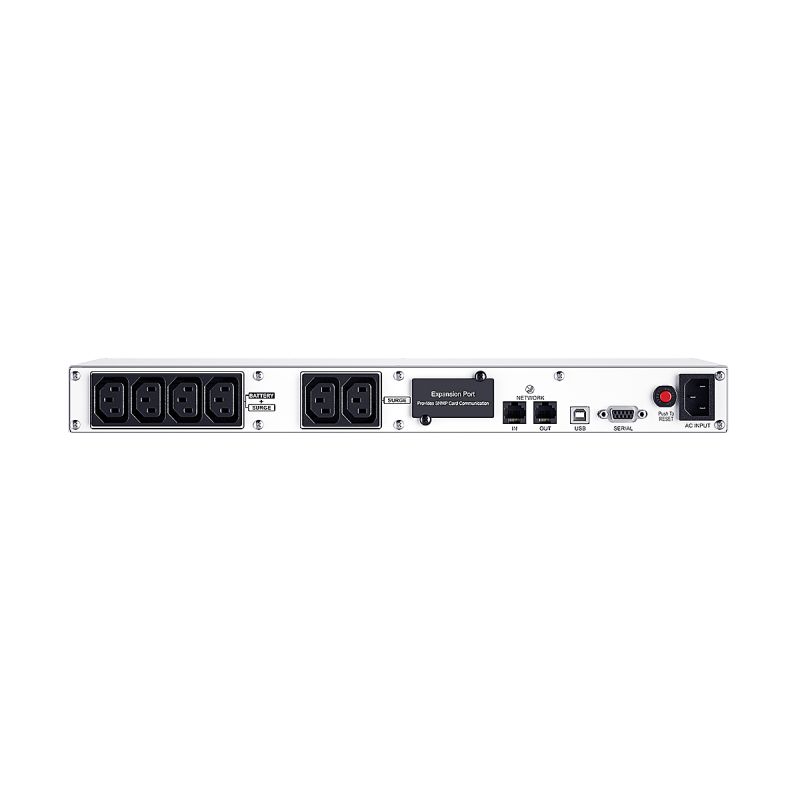

  • Outlet(s) - Total: 6

  • Outlet Type: IEC C13 x 6

  • Outlet(s) - Battery & Surge Protected: 4

  • Outlet(s) - Surge-Only Protected: 2

  • Typical Transfer Time ( ms ): 4

  • Runtime at Half Load ( min ): 13

  • Runtime at Full Load ( min ): 4

  • Typical Recharge Time ( Hours ): 8

  • Start On Battery: Yes

  • User-replaceable: Yes

  • Hot-swappable: Yes

  • Battery Type: Sealed Lead-acid

  • Replacement Battery Pack: RBP0019

  • RBP Quantity ( pcs ): 1

  • Surge Suppression ( Joules ): 405

  • EMI/RFI Filtration: Yes

  • Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out

  • LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Other Information

  • LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output

  • HID Compliant USB Port(s): 1

  • Serial Port: Dry Contact

  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

  • Management Cable ( pcs ): Power Cord x4, USB Cable x1

  • Power Management Software: PowerPanel Business (Recommended)

  • SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

  • Enclosure Construction: Metal

  • Rackmount Ears: Yes

  • Dimensions: 433 x 44 x 235mm

  • Weight: 7.8kg

  • Certifications: CE, EAC, RCM



Features:



  • Line-interactive UPS Topology

  • Simulated Sine Wave Output

  • Overload Protection

  • Surge and Spike Protection

  • Phone/Fax/Modem/DSL/Network Protection

  • USB Connectivity Port

  • SNMP/HTTP Remote Management Capability (Optional)

  • Energy Saving Technology

  • Automatic Voltage Regulation (AVR)

  • Hot-swappable Batteries

  • EMI and RFI Filtration

  • LCD Status Display

  • PowerPanel Management Software

View full details
Description

CyberPower OR600ERM1U-AU Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. Its typically integrated in the back office and server room.

{/{Features/Specification (HTML)}}:

Specifications:



  • Phase: Single Phase

  • Form Factor: Rackmount

  • UPS Topology: Line-interactive

  • Energy Saving Technology: GreenPower UPS Bypass Technology

  • Nominal Input Voltage ( Vac ): 230

  • Input Voltage Range ( Vac ): 165 - 271

  • Input Frequency ( Hz ): 50 �� 3 | 60 �� 3

  • Input Frequency Detection: Auto-sensing

  • Rated Input Current ( A ): 10

  • Input Connector Type: IEC C14

  • Detachable Power Cord Plug Type: IEC C14 x 1

  • Power Cord Length (m.): 1.83

  • Output Capacity (Watts): 360

  • On Battery Waveform: Simulated Sine Wave

  • On Battery Voltage(s) ( Vac ): 230 �� 10%

  • On Battery Frequency ( Hz ): 50 �� 1% | 60 �� 1%

  • Power Factor: 0.6

  • Automatic Voltage Regulation (AVR): Single Boost

  • Overload Protection: Internal Current Limiting, Circuit Breaker

  • Outlet(s) - Total: 6

  • Outlet Type: IEC C13 x 6

  • Outlet(s) - Battery & Surge Protected: 4

  • Outlet(s) - Surge-Only Protected: 2

  • Typical Transfer Time ( ms ): 4

  • Runtime at Half Load ( min ): 13

  • Runtime at Full Load ( min ): 4

  • Typical Recharge Time ( Hours ): 8

  • Start On Battery: Yes

  • User-replaceable: Yes

  • Hot-swappable: Yes

  • Battery Type: Sealed Lead-acid

  • Replacement Battery Pack: RBP0019

  • RBP Quantity ( pcs ): 1

  • Surge Suppression ( Joules ): 405

  • EMI/RFI Filtration: Yes

  • Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out

  • LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Other Information

  • LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output

  • HID Compliant USB Port(s): 1

  • Serial Port: Dry Contact

  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault

  • Management Cable ( pcs ): Power Cord x4, USB Cable x1

  • Power Management Software: PowerPanel Business (Recommended)

  • SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205

  • Enclosure Construction: Metal

  • Rackmount Ears: Yes

  • Dimensions: 433 x 44 x 235mm

  • Weight: 7.8kg

  • Certifications: CE, EAC, RCM



Features:



  • Line-interactive UPS Topology

  • Simulated Sine Wave Output

  • Overload Protection

  • Surge and Spike Protection

  • Phone/Fax/Modem/DSL/Network Protection

  • USB Connectivity Port

  • SNMP/HTTP Remote Management Capability (Optional)

  • Energy Saving Technology

  • Automatic Voltage Regulation (AVR)

  • Hot-swappable Batteries

  • EMI and RFI Filtration

  • LCD Status Display

  • PowerPanel Management Software
