Wholesales Supply

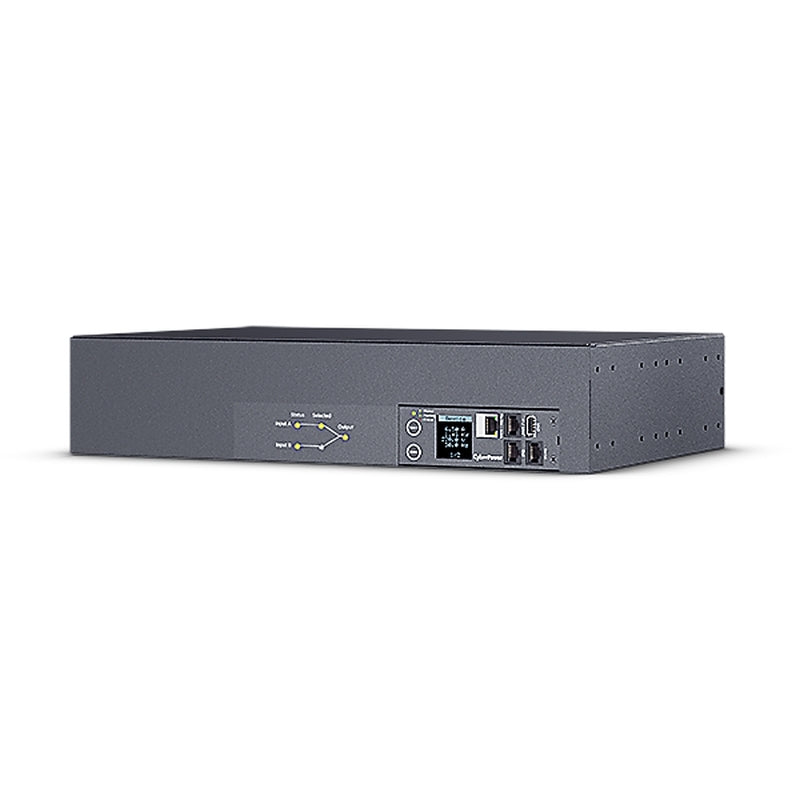

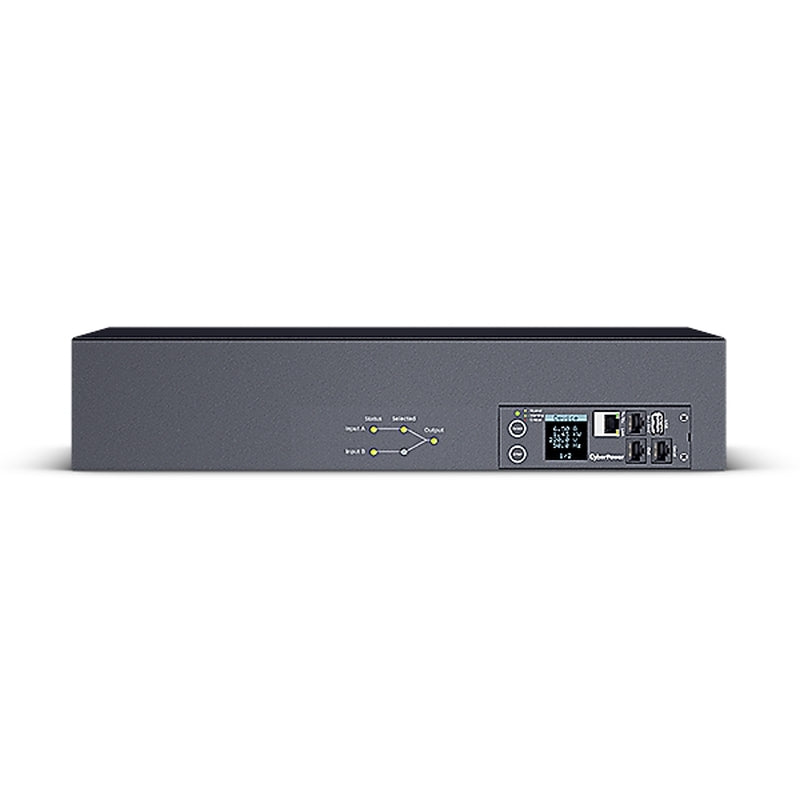

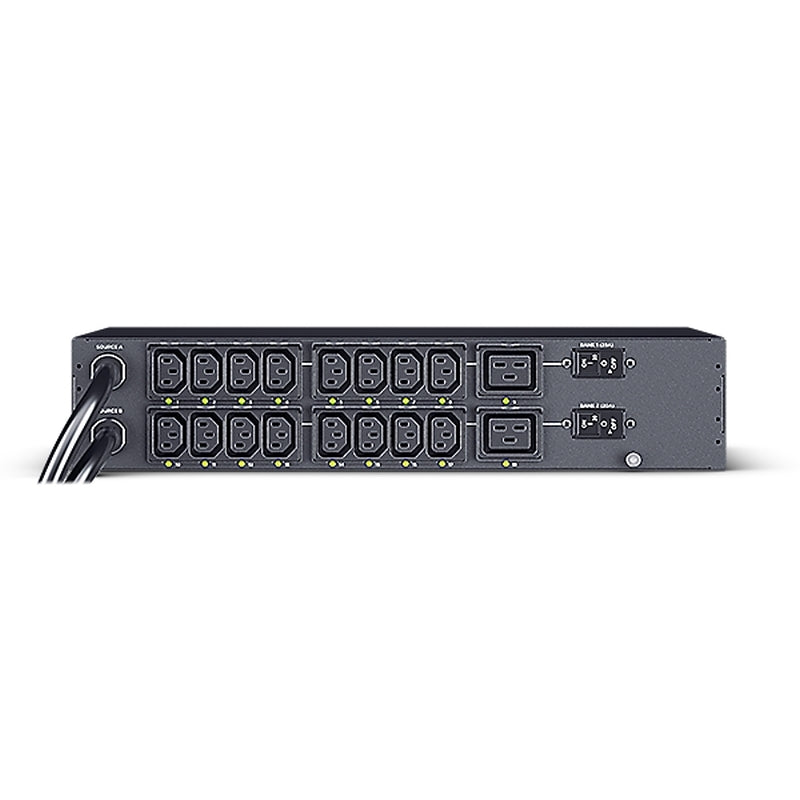

CP Switched ATS 32Amp

CP Switched ATS 32Amp

19 in stock

SKU:PDU44302

Regular price $1,428.70
Regular price $2,049.00 Sale price $1,428.70
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

CP Switched ATS 32Amp

{/{Features/Specification (HTML)}}:


  • Phase: Single Phase

  • Dual Power Inputs: Yes

  • Nominal Input Voltage ( Vac ): 200 - 240

  • Input Frequency ( Hz ): 50 / 60

  • Maximum Input Current ( A ): 32

  • Input Connector Type: IEC 60309 32A x 2

  • Power Cord Length: 3.05m

  • Output Voltage ( V ): Depends on Input

  • Overload Protection: Circuit Breaker

  • Over Current Protection (Each Bank) ( A ): 20

  • Outlets - # of Bank(s): 2

  • Outlet(s) - Total: 18

  • Outlet(s) - Rear: 18

  • Outlet Type: IEC C19 x 2 | IEC C13 x 16

  • Remote Individual Outlet Control: Yes

  • LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version

  • Hot-swappable LCD Module: Yes

  • LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot

  • LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet

  • A-type USB Port: Yes

  • Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))

  • Environmental Sensor Supported: Yes

  • User-upgradeable Firmware: Yes

  • Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)

  • Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog

  • Authentication: RADIUS | LDAP | LDAPS | Windows AD

  • Installed Rack Height (U): 2

  • Form Factor: 2U Horizontal Rackmount

  • Enclosure Construction: Steel

  • Cord Retention Tray: Yes

  • IEC Receptacle Locking: Yes

  • External Site Ground Pin: Yes

  • Adjustable Mounting Brackets: 1 Set

  • Dimensions: 433 x 88 x 215mm

  • Weight: 7.8kg

  • Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS

View full details
Description

CP Switched ATS 32Amp

{/{Features/Specification (HTML)}}:


  • Phase: Single Phase

  • Dual Power Inputs: Yes

  • Nominal Input Voltage ( Vac ): 200 - 240

  • Input Frequency ( Hz ): 50 / 60

  • Maximum Input Current ( A ): 32

  • Input Connector Type: IEC 60309 32A x 2

  • Power Cord Length: 3.05m

  • Output Voltage ( V ): Depends on Input

  • Overload Protection: Circuit Breaker

  • Over Current Protection (Each Bank) ( A ): 20

  • Outlets - # of Bank(s): 2

  • Outlet(s) - Total: 18

  • Outlet(s) - Rear: 18

  • Outlet Type: IEC C19 x 2 | IEC C13 x 16

  • Remote Individual Outlet Control: Yes

  • LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version

  • Hot-swappable LCD Module: Yes

  • LCD Setting & Control: Preferred Source | Source Configuration | Load Configuration | Outlet Control | LCD Settings | Reset / Reboot

  • LED Indicators: PDU Status | Source Status | Load | Tx/Rx | Link | Outlet

  • A-type USB Port: Yes

  • Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))

  • Environmental Sensor Supported: Yes

  • User-upgradeable Firmware: Yes

  • Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)

  • Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog

  • Authentication: RADIUS | LDAP | LDAPS | Windows AD

  • Installed Rack Height (U): 2

  • Form Factor: 2U Horizontal Rackmount

  • Enclosure Construction: Steel

  • Cord Retention Tray: Yes

  • IEC Receptacle Locking: Yes

  • External Site Ground Pin: Yes

  • Adjustable Mounting Brackets: 1 Set

  • Dimensions: 433 x 88 x 215mm

  • Weight: 7.8kg

  • Certifications: CE | FCC Class A | UL62368 | EN 55032 Class A | IEC 62368 | RoHS
