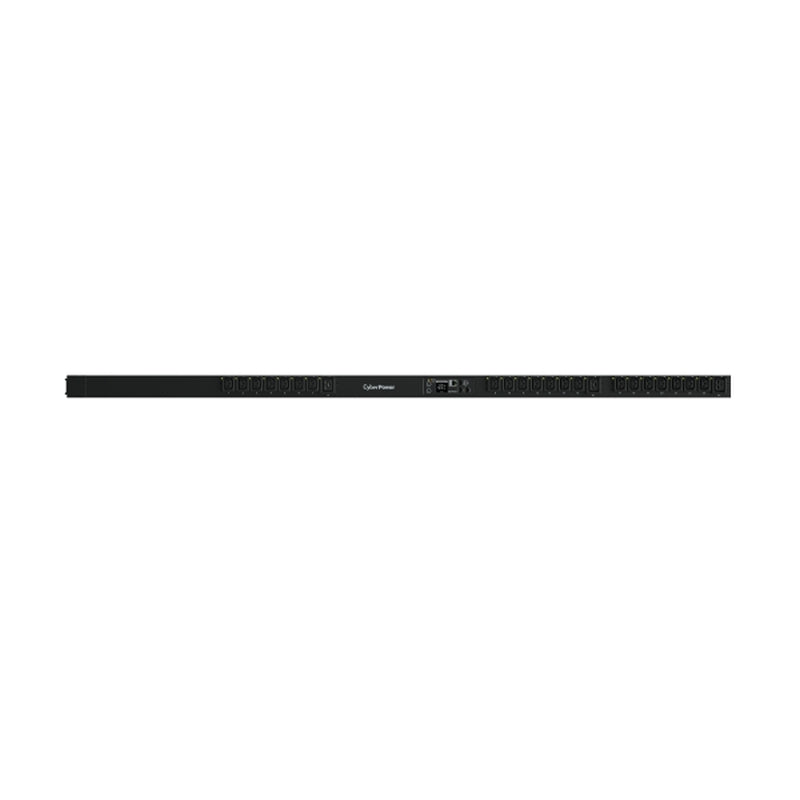

CP Switched ePDU 16Amp

CP Switched ePDU 16Amp

15 in stock

SKU:PDU41404

Regular price $1,379.30
Regular price $1,749.00 Sale price $1,379.30
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

CP Switched ePDU 16Amp

{/{Features/Specification (HTML)}}:

Specifications:



  • Phase: Single Phase

  • Nominal Input Voltage ( Vac ): 200 - 240

  • Input Frequency ( Hz ): 50 / 60

  • Maximum Input Current ( A ): 16 (CE)

  • Input Connector Type: IEC 60309 16A x 1

  • Power Cord Length: 3.05m

  • Output Voltage ( V ): Depends on Input

  • Idle Power Consumption ( W ): < 5

  • Outlets - # of Bank(s): 1

  • Outlet(s) - Total: 24

  • Outlet(s) - Front: 24

  • Outlet Types: IEC C13 x 21 | IEC C19 x 3

  • Remote Individual Outlet Control: Yes

  • LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version

  • Hot-swappable LCD Module: Yes

  • Auto LCD Orientation: Yes

  • LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot

  • LED Indicators: PDU Status | Tx/Rx | Link | Outlet

  • A-type USB Port: Yes

  • Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))

  • Environmental Sensor Supported: Yes

  • User-upgradeable Firmware: Yes

  • Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)

  • Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog

  • Authentication: RADIUS | LDAP | LDAPS | Windows AD

  • Enclosure Construction: Steel

  • Cord Retention Tray: Yes

  • IEC Receptacle Locking: Yes

  • Adjustable Mounting Brackets: 1 Set

  • Dimensions: 56 x 1665 x 48mm

  • Weight: 7.0kg

  • Certifications: CE | EN 55032 Class A | RoHS

  • Warranty: 2 Years



Features:



  • Real-time Local/Remote Monitoring and Switching

  • Work under High Temperature

  • Industrial-grade Metal Housing

  • User Configurable Color LCD

  • Rotatable LCD for Proper Display Orientation

  • Firmware Upgrade via USB

  • User-upgradeable Firmware

  • Adjustable Mounting Brackets

  • IEC Receptacle Locking

  • Controllable Receptacles with Power Sequencing

  • Ultra Low Power Consumption

  • Digital Real-time Load Display

  • Hot-swappable LCD Design

  • LED Status Indicator

  • Supports ENVIROSENSOR

  • PowerPanel Management Software

  • Cord Retention Tray



What's in the box?



  • 1 x PDU41404

  • 1 x User Manual

  • 1 x Product Registration Card

  • 1 x Cord Retention Tray

  • 1 x Mounting Brackets

  • 1 x Cable Ties

  • 1 x Screw Kit
