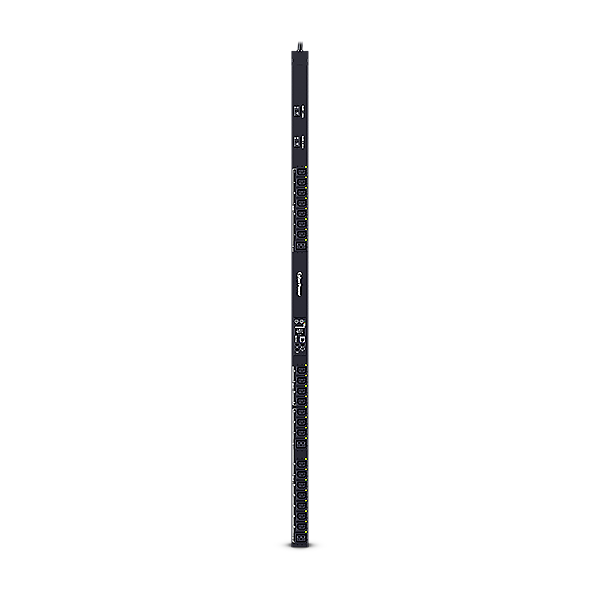

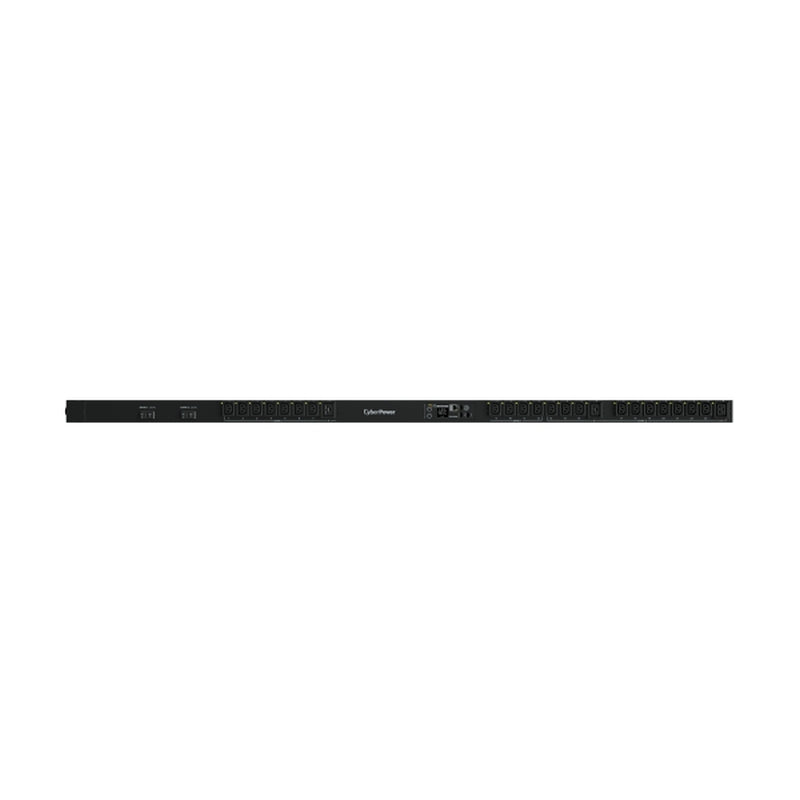

Cyber Power Switched ePDU 32Amp
Cyber Power Switched ePDU 32Amp
Low stock: 10 left
SKU:PDU41405
Regular price
$1,579.00
Regular price
$2,019.00
Sale price
$1,579.00
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cyber Power Switched ePDU 32Amp
The unit provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off. The Daisy Chain function also allows the PDUs connected together to be monitored and controlled under one IP address. The digital LCD display is color configurable and rotatable, allowing users to easily maintain and monitor the PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor, which can provide real-time temperature and humidity monitoring in an IT center.
Specifications:
- Phase: Single Phase
- Nominal Input Voltage ( Vac ): 200 - 240
- Input Frequency ( Hz ): 50 / 60
- Maximum Input Current ( A ): 32 (CE)
- Input Connector Type: IEC 60309 32A x 1 ?
- Power Cord Length: 3.05m
- Output Voltage ( V ): Depends on Input
- Overload Protection: Circuit Breaker

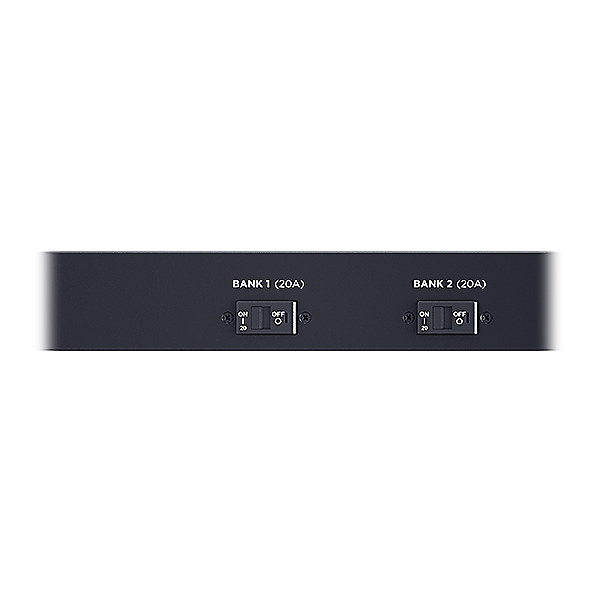

- Over Current Protection (Each Bank) ( A ): 20
- Idle Power Consumption ( W ): < 5
- Outlets - # of Bank(s): 2
- Outlet(s) - Total: 24
- Outlet(s) - Front: 24
- Outlet Type: IEC C13 x 21 | IEC C19 x 3
- Remote Individual Outlet Control: Yes

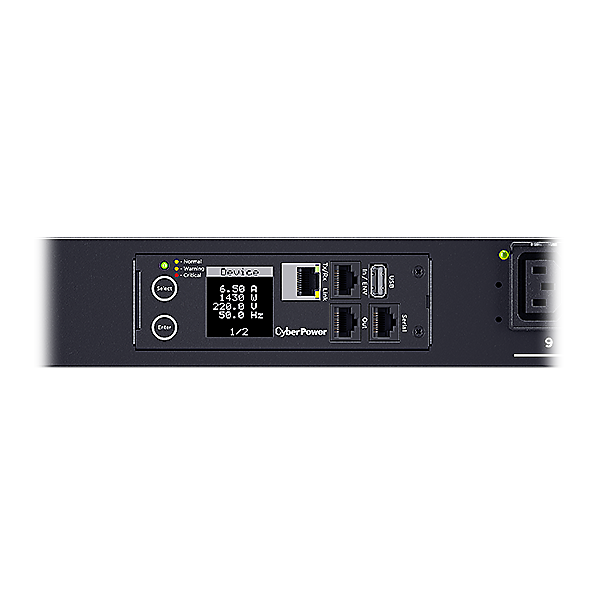

- LCD Information Display: Input Voltage (Volts) | Input Frequency (Hz) | Current Level (Amps) | Power Consumption (Kilowatts) | Network Information | Serial Number | Environment Status | Hardware Version | Firmware Version
- Hot-swappable LCD Module: Yes
- Auto LCD Orientation: Yes
- LCD Setting & Control: Outlet Control | LCD Settings | Reset / Reboot
- LED Indicators: PDU Status | Tx/Rx | Link | Outlet
- A-type USB Port: Yes
- Connectivity Port: RJ45 | RJ45 (for Serial) | RJ45 (for ENVIROSENSOR/ Daisy Chain (In)) | RJ45 (for Daisy Chain (Out))
- Environmental Sensor Supported: Yes
- User-upgradeable Firmware: Yes
- Power Management Software: PowerPanel Business (Recommended for small-medium scale management) | PowerPanel Enterprise (Recommended for large scale management)
- Supported Protocols: IPv4/v6 | SNMPv1/v3 | HTTP/HTTPs | TCP/IP | UDP | DHCP | NTP | DNS | SMTP | SSH | SSL | TLS | Telnet | FTP | and Syslog
- Authentication: RADIUS | LDAP | LDAPS | Windows AD
- Enclosure Construction: Steel
- Cord Retention Tray: Yes
- IEC Receptacle Locking: Yes
- Adjustable Mounting Brackets: 1 Set
- Dimensions: 56 x 1665 x 48mm
- Weight: 8.0kg
- Certifications: CE | EN 55032 Class A | RoHS
- Warranty: 2 Years
Features:
- Real-time Local/Remote Monitoring and Switching
- Overload Protection
- Ultra Low Power Consumption
- Digital Real-time Load Display
- Hot-swappable LCD Design
- LED Status Indicator
- Support ENVIROSENSOR
- Power Panel Management Software
- Cord Retention Tray
- Controllable Receptacles with Power Sequencing
- Work under High Temperature
- Industrial-grade Metal Housing
- User Configurable Color LCD
- Rotatable LCD for Proper Display Orientation
- Firmware Upgrade via USB
- User-upgradeable Firmware
- Adjustable Mounting Brackets
- IEC Receptacle Locking
What's in the box?
- 1 x PDU41405
- 1 x User Manual
- 1 x Product Registration Card
- 1 x Cord Retention Tray
- 1 x Mounting Brackets
- 1 x Cable Ties
- 1 x Screw Kit
