Wholesales Supply

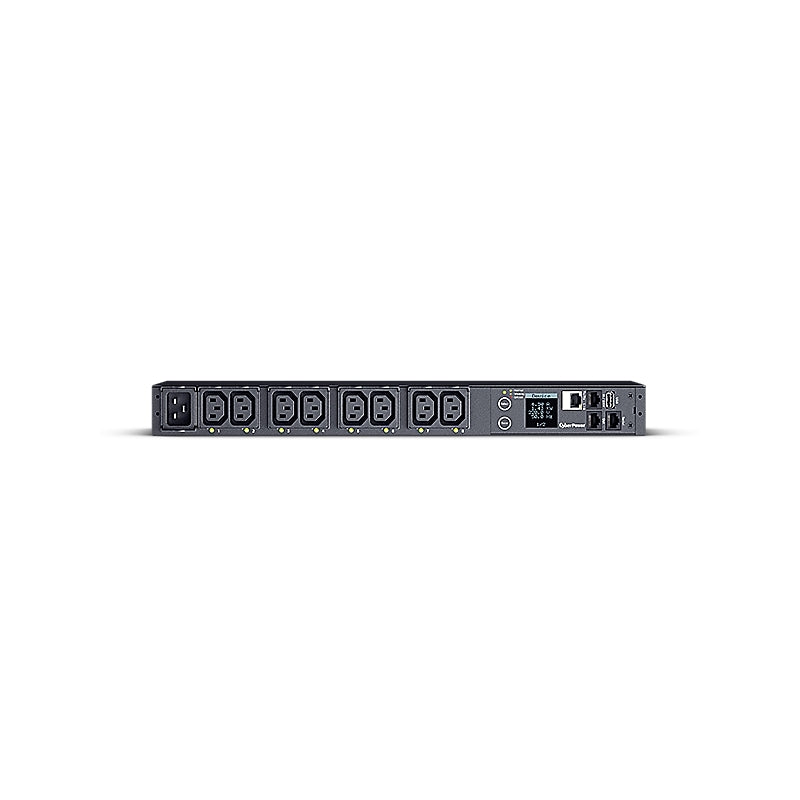

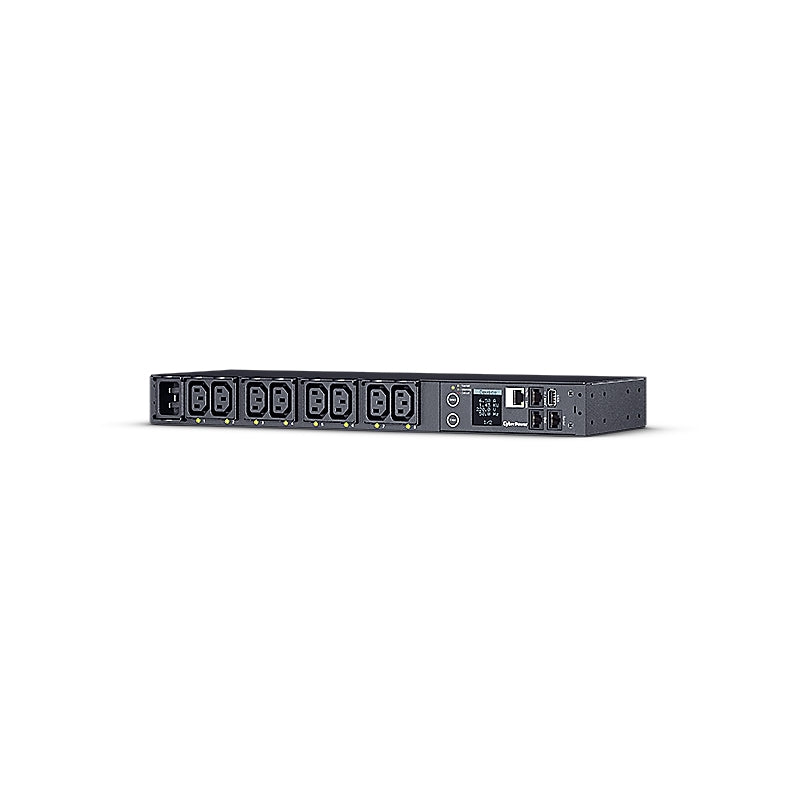

CyberPower Switched ePDU 16Amp

CyberPower Switched ePDU 16Amp

14 in stock

SKU:PDU41005

Regular price $752.18
Regular price $949.00 Sale price $752.18
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

CyberPower Systems Switched ePDU 1RU horizontal 16Amp input - SNMP Network Connection - 8x IEC-320 C13 out -IEC-320 C20 in - 2 Yrs Adv. Replacement WTY

{/{Features/Specification (HTML)}}:

Specifications:



  • Nominal Input Voltage ( Vac ): 100 - 240

  • Input Frequency ( Hz ): 50 / 60

  • Maximum Input Current ( A ): 16

  • Input Connector Type: IEC C20 x 1

  • Power Cord Length: 3.05m

  • Output Voltage ( V ): Depends on Input

  • Idle Power Consumption ( W ): < 5

  • Outlet(s) - Total: 8

  • Outlet Type: IEC C13 x 8

  • Remote Individual Outlet Control: Yes

  • LCD Information Display: Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version

  • Hot-swappable LCD Module: Yes

  • Auto LCD Orientation: Yes

  • LCD Setting & Control: Outlet Control, LCD Settings, Reset / Reboot

  • LED Indicators: PDU Status, Tx/Rx, Link, Outlet

  • Outlet Metering Capability: �� 1%

  • A-type USB Port: Yes

  • Connectivity Port: RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/ Daisy Chain (In)), RJ45 (for Daisy Chain (Out))

  • Environmental Sensor Supported: Yes

  • User-upgradeable Firmware: Yes

  • Power Management Software: PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)

  • Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog

  • Authentication: RADIUS, LDAP, LDAPS, Windows AD

  • Installed Rack Height (U): 1

  • Form Factor: 1U Vertical Rackmount, 1U Horizontal Rackmount

  • Enclosure Construction: Steel

  • Cord Retention Tray: Yes

  • IEC Receptacle Locking: Yes

  • External Site Ground Pin: Yes

  • Adjustable Mounting Brackets: 2 Set (L-short | L-long)

  • Dimensions: 433 x 44 x 112mm

  • Weight: 2.1kg

  • Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A

  • RoHS: Yes



Features:



  • Real-time Local/Remote Monitoring and Switching

  • Work under High Temperature

  • ��1% Measurement Accuracy

  • Digital Real-time Load Display

  • Hot-swappable LCD Design

  • LED Status Indicator

  • Supports ENVIROSENSOR

  • PowerPanel Management Software

  • Cord Retention Tray

  • Controllable Receptacles with Power Sequencing

  • Ultra Low Power Consumption

  • Industrial-grade Metal Housing

  • User Configurable Color LCD

  • Rotatable LCD for Proper Display Orientation

  • Firmware Upgrade via USB

  • User-upgradeable Firmware

  • Adjustable Mounting Brackets

  • IEC Receptacle Locking
