D-LINK DEM-CB100S 1 Mtre Cable

D-LINK DEM-CB100S 1 Mtre Cable

Low stock: 7 left

SKU:DEM-CB100S

Regular price $170.98
Regular price $179.95 Sale price $170.98
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

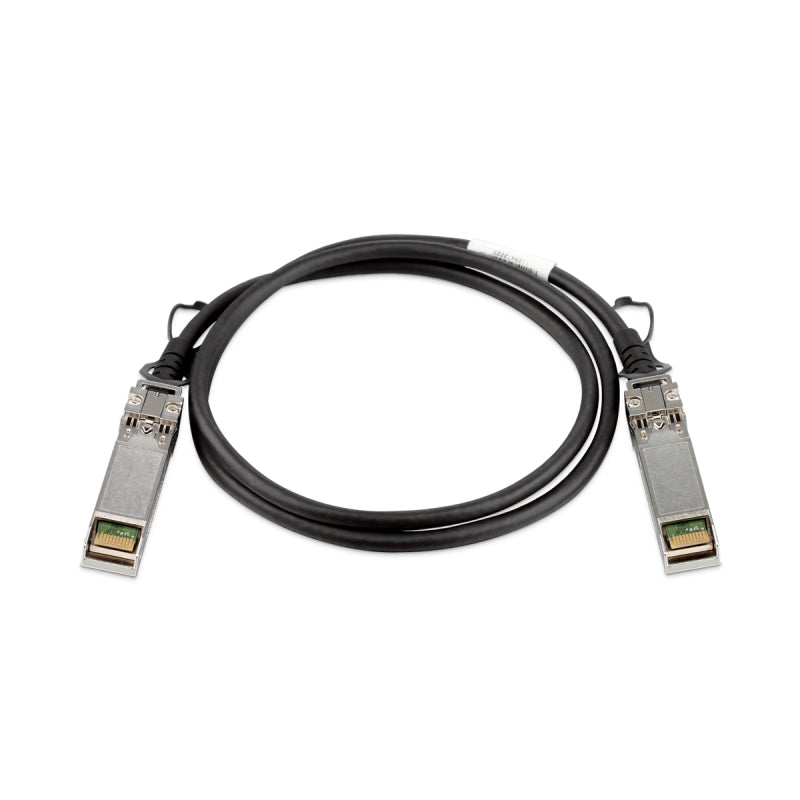

The 10G Passive SFP+ Twinaxial Direct Attach Cable is designed to support connections1 for 10Gbps Gigabit Ethernet or Gigabit Ethernet switches with 10Gbps Gigabit Ethernet uplink

{/{Features/Specification (HTML)}}:

Specifications:



  • Length: 1 m

  • Device Rate: 10 Gbps Gigabit Ethernet

  • Connector Type: SFP+ Cable Assembly

  • Wire AWG: 30 AWG

  • VMA Loss to Crosstalk Ratio (VCR): Min.: 32.5 dB

  • Minimum Cable Bend Radius: 23.5 mm (0.93 inches)

  • Cable Characteristic Impedance: 100 Ohms

  • Voltage: 30 V AC

  • Current: 0.5 A

  • Temperature Operating: -40 to 85 ��C (-40 to 185 ��F)

  • Certifications: SFP MSA (Multi-Source Agreement), SFF-8431, EIA 364, UL 94



Features:



  • SFP+ (Enhanced Small Form-factor Pluggable)

  • Ideal for High-Bandwidth Operations

  • High speeds and lower latency result in faster transmissions than other types of cables

  • Cost-effective Solution

  • Energy Efficiency

View full details
