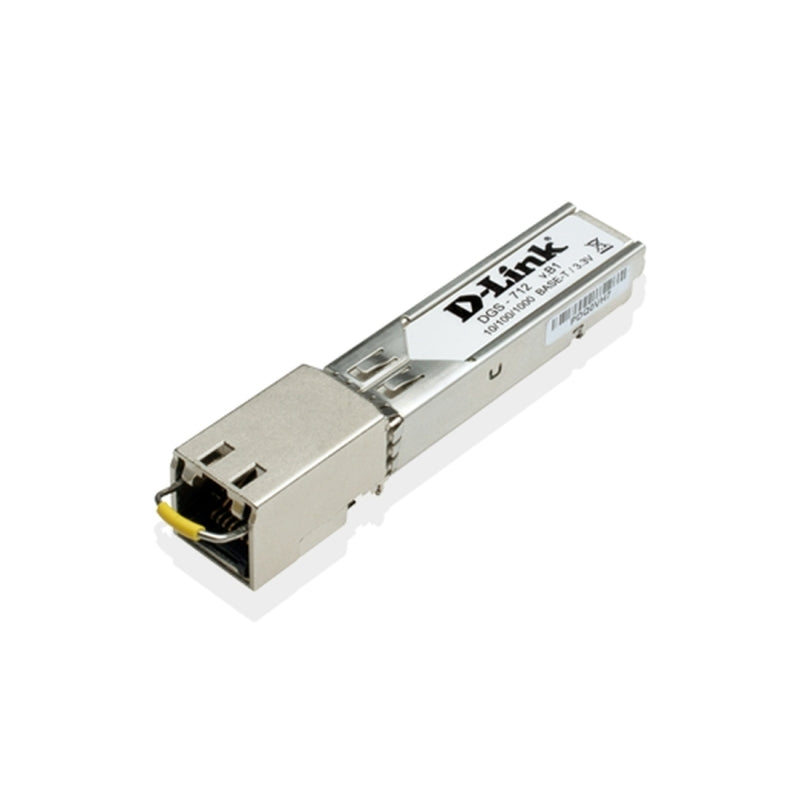

D-LINK DGS-712 Transceiver

D-LINK DGS-712 Transceiver

Low stock: 2 left

SKU:DGS-712

Regular price $158.26
Regular price $149.95 Sale price $158.26
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

1000Base-TX RJ45 SFP Transceiver - 100m

{/{Features/Specification (HTML)}}:

Specifications:



  • Standard: IEEE 802.3ab 1000BASE-T Gigabit Ethernet

  • Transceiver Type: SFP (Small Form Pluggable)

  • Connector: RJ-45

  • Auto MDI/MDIX: Automatic crossover detection enabled, External crossover cable not required

  • Data Rate: 1,000 Mbps (IEEE 802.3 compatible), 10/100/1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only

  • Cable Type: Cat. 5 twisted-pair cable

  • Maximum Cable Distance Coverage: 100 meters

  • Supply Current: 350mA (typical), 400mA (maximum), 1.3W max power over full range of voltage and temperature *

  • Input Voltage: 3.1V (minimum), 3.3V (typical), 3.5V (maximum), Referenced to GND

  • Maximum Voltage: 4V

  • Surge Current: 30mA, Hot-plug above steady state current *

  • Operating Temperature: 0 to 85 C

  • Storage Temperature: -40 to 85 C



Features



  • Up to 1.25Gb/s bi-directional data links

  • Hot-pluggable SFP footprint

  • Extended case temperature range

  • Fully metallic enclosure for low EMI

  • Low power dissipation (typical 1.2 watts)

  • RJ-45 connector assembly

  • Access to physical layer IC via 2-wire serial bus

  • 10/100/1000 BASE-T operation in host systems with

  • SGMII interface

  • Gigabit Ethernet over Cat. 5 cable

  • +3.3V electrical power interface
