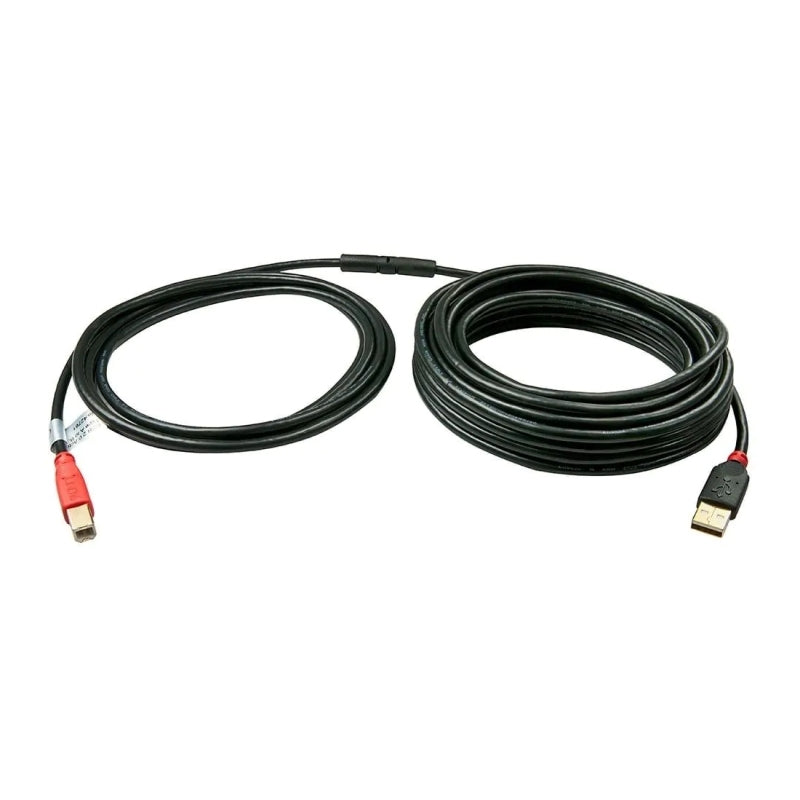

Lindy 10m USB 2.0 A-B Active

Lindy 10m USB 2.0 A-B Active

Out of stock

SKU:42761

Regular price $75.22
Regular price $95.00 Sale price $75.22
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

The Lindy USB 2.0 Active Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 10m whilst continuing to support data transfer rates of up to 480Mbps.

{/{Features/Specification (HTML)}}:

Specifications:



  • Connector A: USB Type A Male

  • Connector B: USB Type B Male

  • Housing Material: Plastic

  • Connector Plating: Front: Gold / Back: Nickel

  • Pin Construction: Brass

  • Pin Plating: Gold Flash

  • Dimensions: USB A Male: 14x41x6mm, USB B Male: 10x41x10mm, Repeater: 10mm (diameter), length: 52.5mm

  • Length: 10m

  • Standard: USB 2.0

  • Colour: Black

  • Type: Round

  • Jacket Diameter: 5mm +/-0.15mm (0.2in +/- 0.01in)

  • Jacket Material: Half matt PVC low toxic

  • Conductor Material: Tinned Copper

  • Conductor Gauge: 26/20AWG

  • Shielding: AL Mylar and braid

  • Supported Bandwidth: 480 Mbps

  • Nominal Attenuation: (0.064 MHz, -0.08 dB), (0.256MHz, -0.11 dB), (0.512MHz, -0.13 dB), (0.772 MHz, -0.15 dB), (1 MHz, -0.2 dB), (4 MHz, -0.39 dB), (8 MHz, -0.57 dB), (12 MHz, -0.76 dB), (24 MHz, -0.95 dB), (48 MHz, -1.35dB), (96 MHz, -1.9 dB), (200 MHz, -3.2 dB), (400 MHz, -5.8 dB),

  • Minimum Bend Radius: 26mm

  • Operating Temperature: 0C - 50C

  • Storage Temperature: -20C - 60C

  • Transmission Medium: Twisted Pair

  • Transmission Technology: USB 2.0

  • Packaging Type: Polybag

  • Weight: 0.372kg

  • Warranty: 2

  • Product Compliance: CE, FCC, RoHS & REACH



Features:



  • 10m USB 2.0 Active Repeater Cable

  • Supports transfer rates up to 480Mbps

  • Ideal for direct device connection

  • Plug & Play installation

  • 2-year warranty
