Wholesales Supply

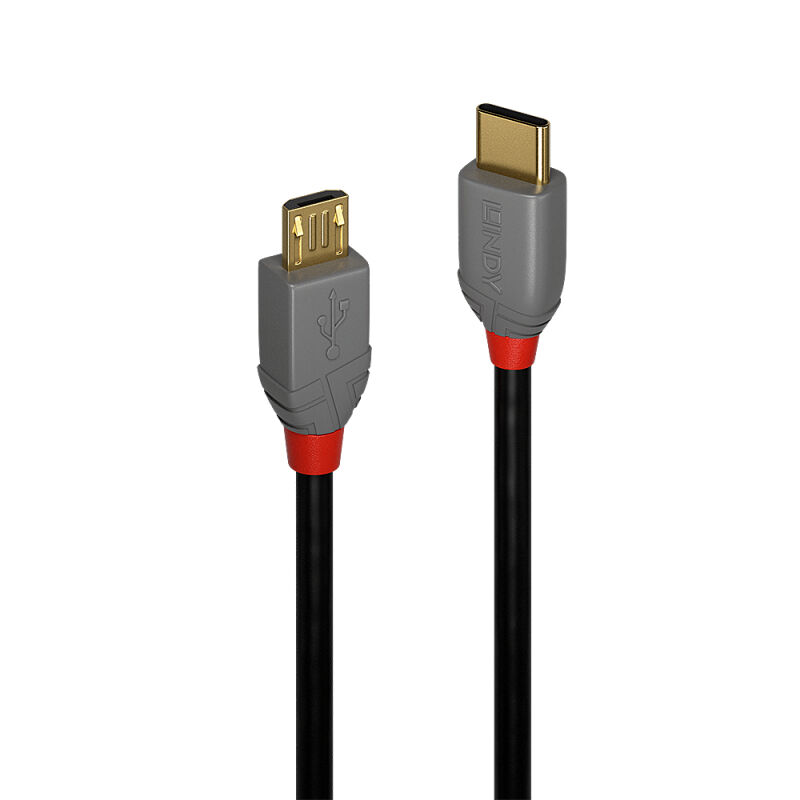

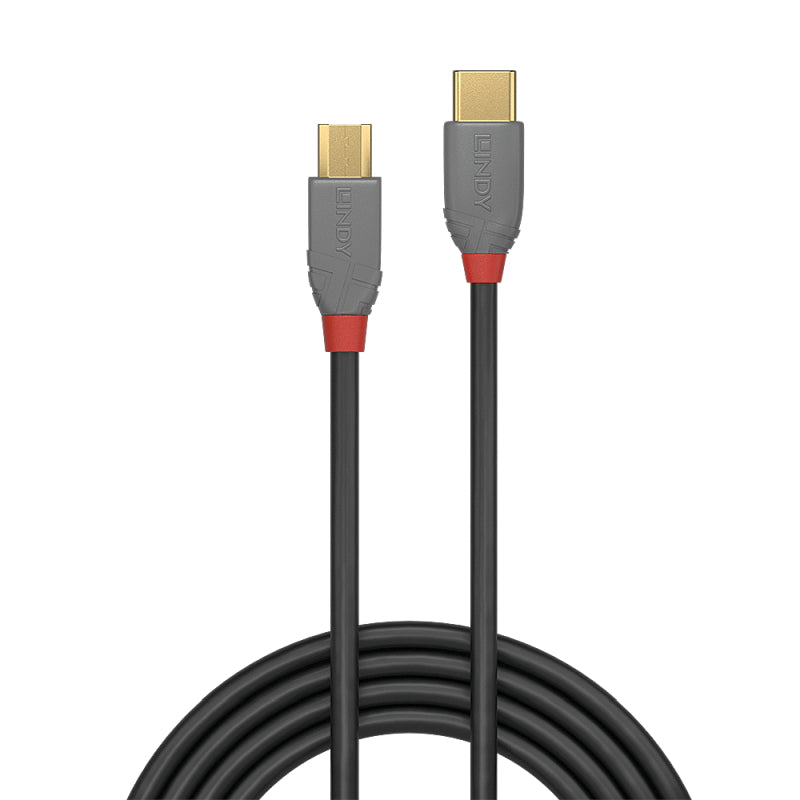

Lindy .5m USB2 C-Micro-B Cable

Lindy .5m USB2 C-Micro-B Cable

Out of stock

SKU:36890

Regular price $6.44
Regular price $9.95 Sale price $6.44
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

Anthra Line USB 2.0 Type C to Micro-B cables are the professional choice for high performance connections in commercial AV and IT installations.

{/{Features/Specification (HTML)}}:

Specifications:



  • Connector A: USB 2.0 Type C Male

  • Connector B: USB 2.0 Micro B Male

  • Housing Material: PVC

  • Connector Plating: 24K Gold Plated

  • Pin Construction: Phosphor Bronze

  • Pin Plating: 24K Gold Plated

  • Dimensions: USB Type C: 11.0 x 25.5 x 7.3 mm, USB Type Micro-B: 10.0 x 24 x 6.5 mm

  • Length: 0.5m

  • Standard: USB 2.0

  • Colour: Black

  • Type: Round

  • Jacket Diameter: 3.5mm (0.14in)

  • Jacket Material: PVC

  • Conductor Material: Tinned Copper

  • Conductor Gauge: 28AWG

  • Shielding: Copper Braid 60%

  • Supported Bandwidth: 480Mbps

  • Maximum Resolution: -

  • Nominal Attenuation: 0.5-3m: 0.5Mhz ? 400Mhz < 5.8db

  • Minimum Bend Radius: 35mm

  • Operating Temperature: -20C - 80C

  • Storage Temperature: -25C - 85C



Features:



  • Professional choice USB 2.0 Type C to Micro-B cable for commercial and high-performance AV and IT installations

  • Supports data transfer speeds up to 480Mbps

  • Robust PVC housing, gold-plated connectors and contacts

  • Double-shielded cable, corrosion-resistant tinned copper conductors

  • USB 2.0, 480Mbps; 10 year warranty
