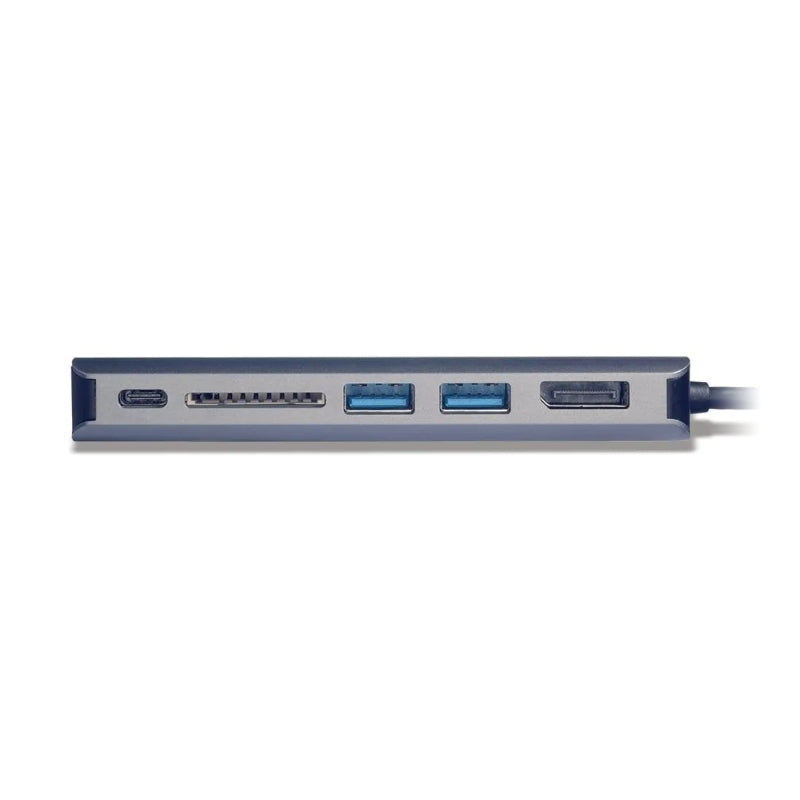

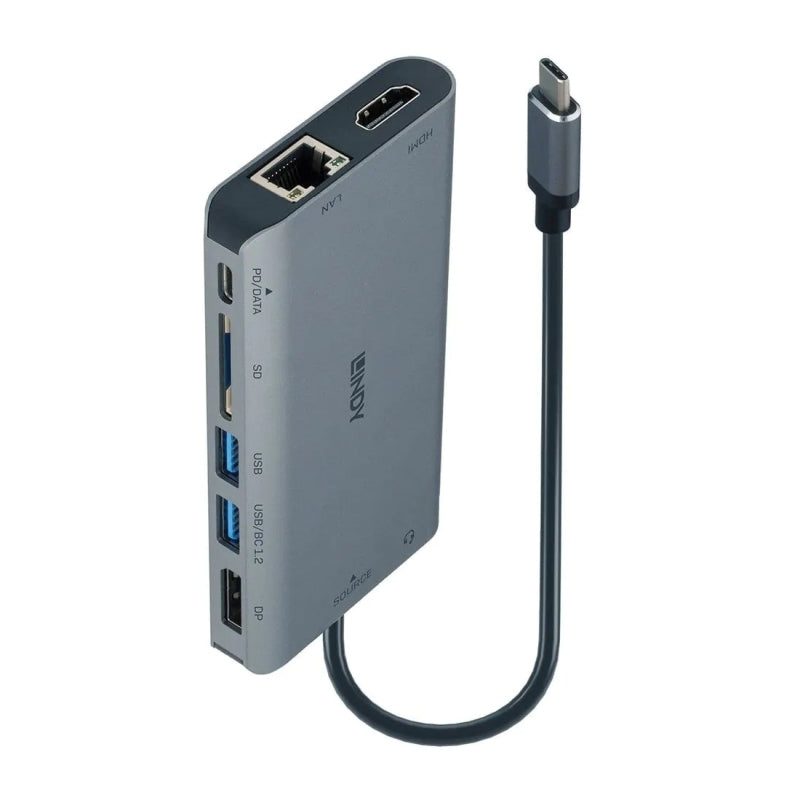

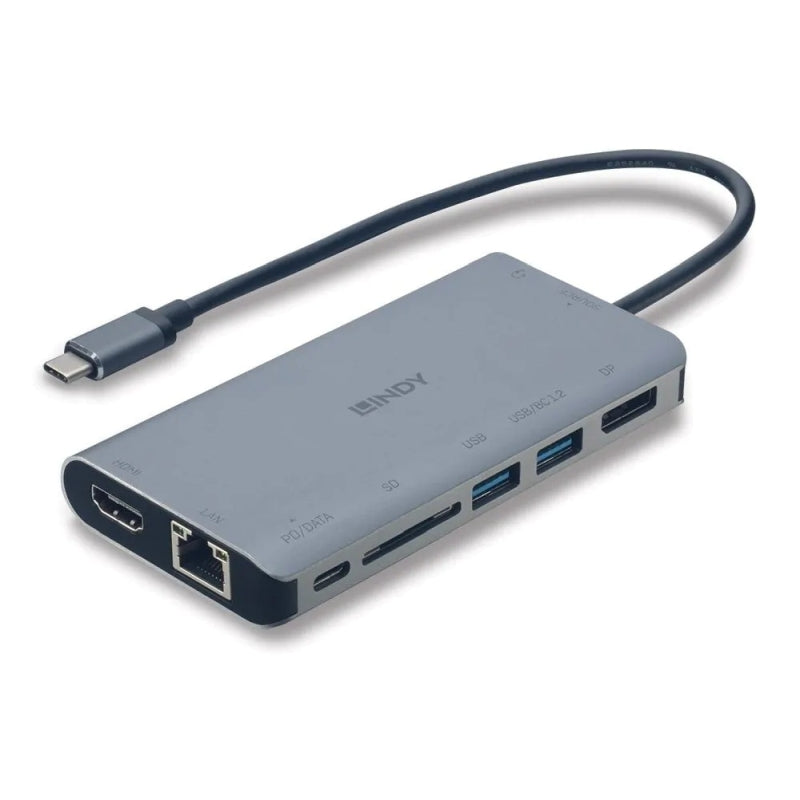

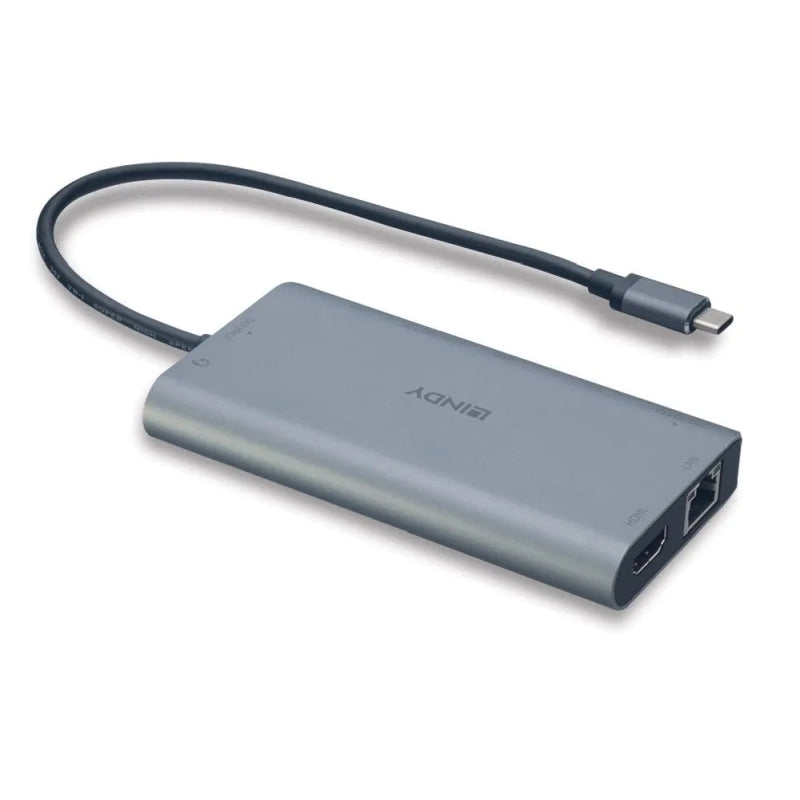

Lindy USB3.2 USBC Laptop Dock

Lindy USB3.2 USBC Laptop Dock

Low stock: 2 left

SKU:43323

Regular price $164.63
Regular price $199.00 Sale price $164.63
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

The Lindy USB 3.2 Type C Mini Laptop Dock is a compact and versatile solution for connecting laptops to a range of interfaces including displays. Featuring all critical interfaces required for a modern workstation

{/{Features/Specification (HTML)}}:

Specifications:




  • Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio

  • Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0 | HDMI 1.4 | DP 1.2 | Gigabit LAN | Audio (combo)

  • Supported Bandwidth: 5 Gbps | 10/100/1000 Mbps

  • Maximum Input Resolution: 3840 x 2160@30Hz

  • Maximum Output Resolution: 3840 x 2160@30Hz (HDMI) | 3840 x 2160@30Hz (DP) | simultaneous connection: 1920 x 1080

  • Chipset: VM3332 | VL817 | VL102 | AU6438 | RTL8153B | HS-100B

  • Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support

  • Power Delivery: PD 3.0 up to 100W (20V 5A)

  • HDCP Support: HDCP 1.4

  • Supported Audio: Supports 48/44.1kHz audio sampling rate

  • Separate Audio Ports: 1x Audio combo port 3.5mm

  • Special Features: DisplayPort Alternate Mode | USB Type C Female port supports power and data | 1x Battery Charging 1.2 port

  • Inputs: 1 x USB Type C (Male)

  • Outputs: 1x HDMI (Female) | 1x DisplayPort (Female) | 1x RJ45 (Female) | 2x USB Type A (Female) | 1x USB Type C (Female) / 1x SD slot | 1x 3.5mm Audio (Female)

  • Power: 1 x USB Type C (Female) PD port

  • Dimensions WxDxH: 116.5 x 61 x 16mm

  • Housing Material: Aluminium

  • Net Weight: 0.115kg

  • Power Requirements: Bus-powered

  • Packaging Dimensions: 150 x 137 x 120mm

  • Gross Weight: 0.15kg

  • Warranty (Years): 2

  • Certificated: CE | UKCA | FCC | REACH & RoHS | California Proposition 65



Features:




  • Adds 2 USB Type A ports & 1 USB Type C port (5Gbps) a 4K HDMI and DP port Gigabit Ethernet and an Audio port to a laptop

  • Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays

  • Features DisplayPort Alternate Mode

  • USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock

  • Extend Your Displays

  • Added Connectivity

  • Plug-and-Play

  • 2 year warranty

View full details
Description

The Lindy USB 3.2 Type C Mini Laptop Dock is a compact and versatile solution for connecting laptops to a range of interfaces including displays. Featuring all critical interfaces required for a modern workstation

{/{Features/Specification (HTML)}}:

Specifications:




  • Interface: USB Type C to 1x HDMI / 1x DP / 1x RJ45 / 2x USB Type A / 1x USB Type C / 1x SD / 1x Audio

  • Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0 | HDMI 1.4 | DP 1.2 | Gigabit LAN | Audio (combo)

  • Supported Bandwidth: 5 Gbps | 10/100/1000 Mbps

  • Maximum Input Resolution: 3840 x 2160@30Hz

  • Maximum Output Resolution: 3840 x 2160@30Hz (HDMI) | 3840 x 2160@30Hz (DP) | simultaneous connection: 1920 x 1080

  • Chipset: VM3332 | VL817 | VL102 | AU6438 | RTL8153B | HS-100B

  • Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support

  • Power Delivery: PD 3.0 up to 100W (20V 5A)

  • HDCP Support: HDCP 1.4

  • Supported Audio: Supports 48/44.1kHz audio sampling rate

  • Separate Audio Ports: 1x Audio combo port 3.5mm

  • Special Features: DisplayPort Alternate Mode | USB Type C Female port supports power and data | 1x Battery Charging 1.2 port

  • Inputs: 1 x USB Type C (Male)

  • Outputs: 1x HDMI (Female) | 1x DisplayPort (Female) | 1x RJ45 (Female) | 2x USB Type A (Female) | 1x USB Type C (Female) / 1x SD slot | 1x 3.5mm Audio (Female)

  • Power: 1 x USB Type C (Female) PD port

  • Dimensions WxDxH: 116.5 x 61 x 16mm

  • Housing Material: Aluminium

  • Net Weight: 0.115kg

  • Power Requirements: Bus-powered

  • Packaging Dimensions: 150 x 137 x 120mm

  • Gross Weight: 0.15kg

  • Warranty (Years): 2

  • Certificated: CE | UKCA | FCC | REACH & RoHS | California Proposition 65



Features:




  • Adds 2 USB Type A ports & 1 USB Type C port (5Gbps) a 4K HDMI and DP port Gigabit Ethernet and an Audio port to a laptop

  • Supports 3840x2160@30Hz for an HDMI or DP display and Full HD 1920x1080 for simultaneous use of HDMI and DP displays

  • Features DisplayPort Alternate Mode

  • USB Power Delivery 3.0 (100W) allows charging the laptop while using the Mini Dock

  • Extend Your Displays

  • Added Connectivity

  • Plug-and-Play

  • 2 year warranty
