Wholesales Supply

MAXHUB Trolley Up Down Tilt

MAXHUB Trolley Up Down Tilt

Low stock: 4 left

SKU:EST11

Regular price $3,095.17
Regular price $2,619.10 Sale price $3,095.17
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

{/{Features/Specification (HTML)}}:

Features:

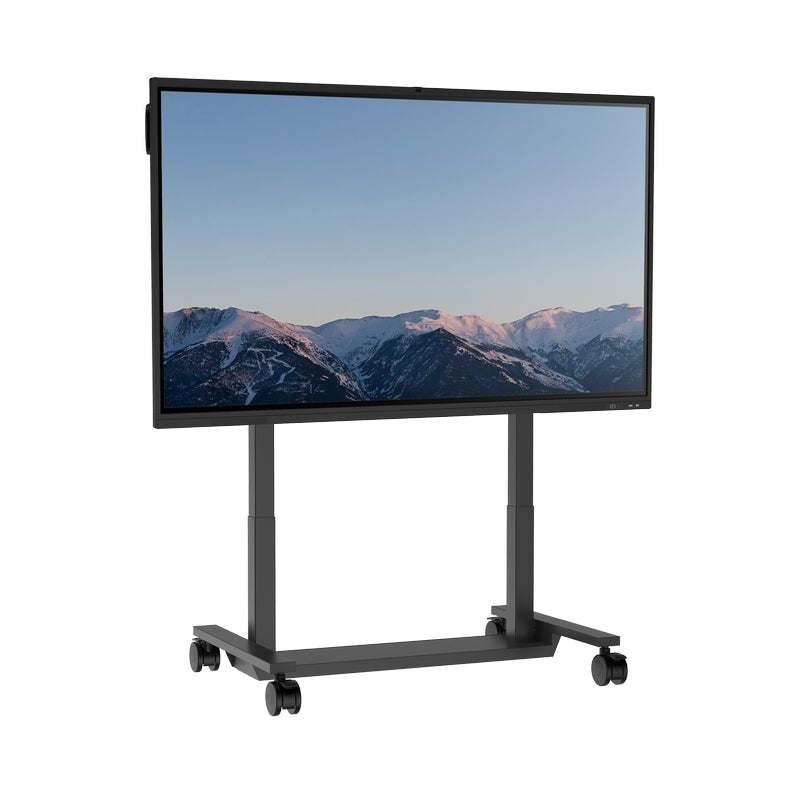

Maxhub Motorised AV Trolley for Interactive Displays



  • Up/Down plus flip angle to 90 degrees for tabletop use

  • The EST11 has one of the largest ranges of movement currently available in motorised trolleys

  • It is robust and yet elegant in its design and allows for both up/down movement as well as the ability to flip to 90 degrees for tabletop use of the panel

  • EST11 is easy to assemble and comes packaged with everything you will need

  • The best part is that you can raise and lower the trolley all from an application on the interactive display itself


Specification:




  • Dimension Assembled: 1178(L) x 741(W) x (1056 to 1706)(H)mm

  • Package Dimension: 1305(L) x 825(W) x 205(H)mm

  • Power Requirements: AC 100-240V, 50/60hz

  • Power Consumption(Typical): 135W

  • Power Consumption (Max): 300W

  • Motor travel speed: 35mm/s

  • Lifting Distance: 650mm

  • Flip Angle: 90 degree +- 1 degree

  • Gross Weight: 57kg

  • Net Weight: 46kg

  • Max Load: 100kg

  • Max LRecommend Panel Size: Up to 86 inch only

  • Control Mode: Control Panel /Control Pad / Software

  • Castors: 4 Inches Mute

  • Support Wall-hanging: Standard Dedicated Wall Mount

  • Package Includes: AC Power Cable x 1; USB Adapter Cable x 1; Hand Controller x 1; Holder For Hand Controller x 1; Screw Accessory Package x 1; Installation Manual x 1; User Guide x 1

  • OEM: EST11

View full details
Description

{/{Features/Specification (HTML)}}:

Features:



Maxhub Motorised AV Trolley for Interactive Displays



  • Up/Down plus flip angle to 90 degrees for tabletop use

  • The EST11 has one of the largest ranges of movement currently available in motorised trolleys

  • It is robust and yet elegant in its design and allows for both up/down movement as well as the ability to flip to 90 degrees for tabletop use of the panel

  • EST11 is easy to assemble and comes packaged with everything you will need

  • The best part is that you can raise and lower the trolley all from an application on the interactive display itself


Specification:




  • Dimension Assembled: 1178(L) x 741(W) x (1056 to 1706)(H)mm

  • Package Dimension: 1305(L) x 825(W) x 205(H)mm

  • Power Requirements: AC 100-240V, 50/60hz

  • Power Consumption(Typical): 135W

  • Power Consumption (Max): 300W

  • Motor travel speed: 35mm/s

  • Lifting Distance: 650mm

  • Flip Angle: 90 degree +- 1 degree

  • Gross Weight: 57kg

  • Net Weight: 46kg

  • Max Load: 100kg

  • Max LRecommend Panel Size: Up to 86 inch only

  • Control Mode: Control Panel /Control Pad / Software

  • Castors: 4 Inches Mute

  • Support Wall-hanging: Standard Dedicated Wall Mount

  • Package Includes: AC Power Cable x 1; USB Adapter Cable x 1; Hand Controller x 1; Holder For Hand Controller x 1; Screw Accessory Package x 1; Installation Manual x 1; User Guide x 1

  • OEM: EST11
