Wholesales Supply

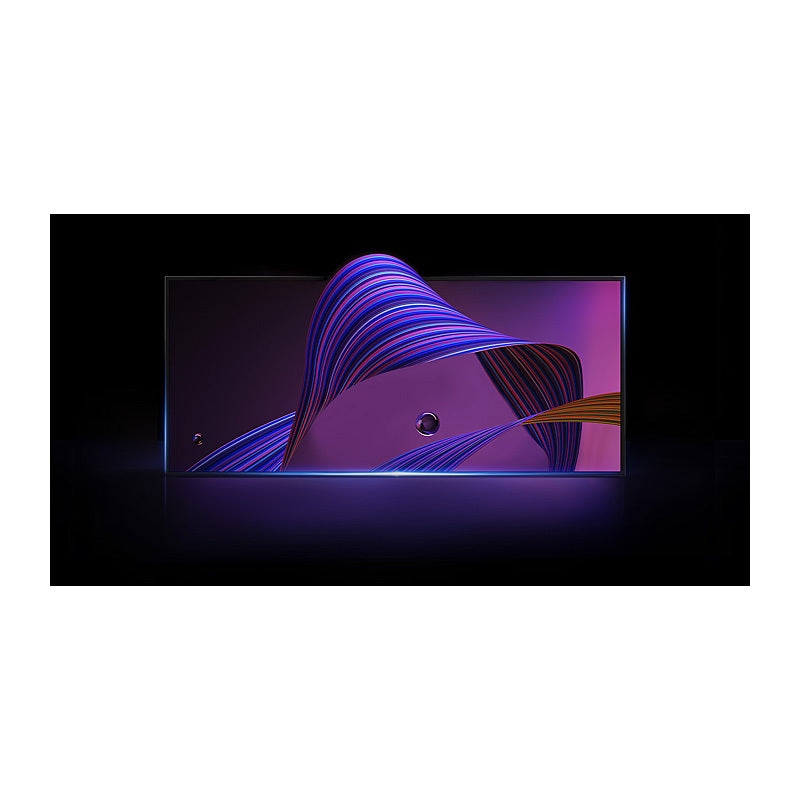

MAXHUB Ultrawide 92''

MAXHUB Ultrawide 92''

11 in stock

SKU:UW92NA

Regular price $10,833.72
Regular price $9,166.70 Sale price $10,833.72
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

92''5K Display, 21:9, support portrait mode, Android 13, 8G+64G, 2x20W+20W speaker system, MAXHUB OS, 600nits, VESA 800x600, PIR sensor, support OPS62/72 windows system, 24x7 operating hours

{/{Features/Specification (HTML)}}:

Features:



The panoramic viewing angle, large size, and 5K definition blend together to create a display that seamlessly matches the demands of hybrid working, commercial display, command & control, and a host of other professional situations.



  • 92'' 5K (5120x2160) Resolution display

  • 21:9 Aspect Ratio

  • 600 Nit

  • Ultra-wide panoramic vision

  • Portrait and Landscape mode

  • Empowered by Microsoft Teams Rooms

  • 8GB Ram, 64GB Rom

  • Maxhub Meeting OS V6 System



Specifications:



Display




  • Model: UW92NA

  • Screen Size (Inch): 92

  • Aspect Ratio: 21:9

  • Panel: VA

  • Backlight: DLED

  • Brightness: 600 nits

  • Haze: 25%

  • Resolution: 5120 �� 2160

  • Refresh Rate: 60Hz

  • Contrast Ratio: 5000:1 (typ.)

  • Viewing Angle (H / V): 178�� / 178��

  • Display Orientation Landscape / Portrait

  • Operation Hours (Hours / Day): 24 / 7

  • Response Time: 6.5ms

  • Life Time (50%): =50,000 hours



Built-in System




  • Operating System: Android 13.0

  • CPU: A76 �� 4 + A55 �� 4

  • GPU: Mali-G610 MP4

  • RAM: 8 GB

  • ROM: 64 GB

  • System OS: MAXHUB Meeting OS V6

  • Screen share: MAXHUB Share Support BYOM / Miracast / Airplay / Chromecast

  • Device Management: MAXHUB Pivot

  • Protocal Control: RS232 / IP control

  • Special Features: Screen rotation / Auto input change / Play via URL / Wake on LAN / HDMI CEC / Compatible with control systems (Crestron, Q-SYS, and Extron)



Connectivity




  • Input:

    • HDMI IN �� 4 - HDMI 2.0 �� 3, HDMI 2.1 �� 1

    • USB 2.0 �� 1

    • USB 3.0 �� 4

    • USB Type-C �� 1

    • DP IN �� 1

    • AUDIO IN �� 1

    • RS232 �� 1

    • RJ45 IN �� 1






  • Output

    • HDMI OUT �� 1

    • TOUCH 2.0 �� 3

    • AUDIO OUT �� 1

    • SPDIF �� 1

    • RJ45 OUT �� 1



  • OPS Slot: Module slot �� 1

  • Wi-Fi: Wi-Fi 6

  • Bluetooth: 5.2



 Audio:




  • Sound Channel: 2.1

  • Speaker Power: 2 �� 20W + 20W



Power:




  • Power Supply: 100-240V~50/60Hz

  • Power Consumption (Energy Saving): 177 W

  • Power Consumption (Typ.): 320 W

  • Power Consumption(Max.): 530 W



Physical Specification:




  • Bezel Width (L �� R �� T �� B): 17.9 / 17.9 / 17.9 / 17.9 mm

                                               0.7 / 0.7 / 0.7 / 0.7 inch

  • Dimension(W*H*D): 2182 �� 944 �� 85 mm

                                  85.90 �� 37.16 �� 3.35 inch

  • Shipping Dimension(W*H*D):  2360 �� 1072 �� 225 mm

                                                 92.91 �� 42.20 �� 8.86 inch

  • VESA: 800 �� 600 mm

  • Net Weight: 43.40 Kg

  • Gross Weight: 62.60 Kg



Environmental Conditions




  • Operating Temperature: 0��C~40��C

  • Storage Temperature: -20��C~60��C

  • Operating Humidity: 10%~90%RH

  • Storage Humidity: 10%~90%RH



Certification




  • Energy Star: Y

  • IP Rating: IP5X



Warranty:




  • Display: 3 years warranty



Accessories




  • Power Cord

  • HDMI Cable

  • Remote Control

  • Wall Mount

  • Wireless Adapter



Optional Module




  • OPS: OPS62A / OPS72A

  • Mobile Stand: ST41B / ST23C
